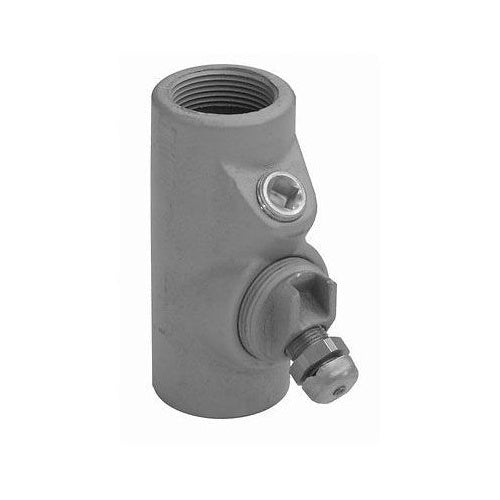

Appleton EYDEF75AL 3/4" Drain Seal Aluminum

Overview

Appleton EYDEF75AL 3/4" Drain Seal Aluminum

Product Specifications

• UPC: 78138180980
• Mounting Position: Vertical
• Approval: UL, CSA
• Class I Div 1 And 2 Group A/B/C/D, Class Ii Div 1 And 2 Group E/F/G, Class Iii: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
• Additional Information: Overall Dimension 4.31 Inch L x 1.75 Inch W
• Catalog Number: EYDEF75AL
• Brand Name: Unilet[R]
• Model: Type EYDEF
• Type: Drain
• Turning Radius: 1.38 Inch
• Trade Size: 3/4 Inch
• Connection Type: Female
• Material: Almag 35 Aluminum
• Catalog Description: UNILETS EY SERIES 40 PCT EXPANDED FILL VERTICAL DRAIN SEALING FITTING, SIZE: 3/4 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: FEMALE THREADED, TURNING RADIUS: 1.38 IN, LENGTH: 4.31 IN, WIDTH: 1-3/4 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, GROUPS B, C, D, CLASS II, GROUPS E, F, G, AND CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Aluminum Sealing Bodies
• Full Technical Description: Drain Type; Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Vertical Mounting Position; 1.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 4.31 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDEF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381809801
• SKU Name: app eydef75al
