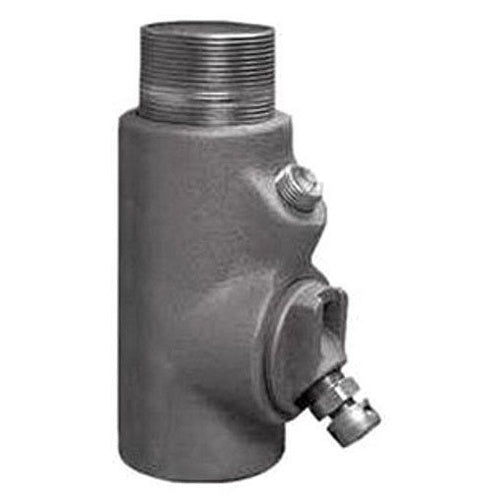

Appleton EYDM-200AL 2" Aluminum Drain Seal

Overview

Appleton EYDM-200AL 2" Aluminum Drain Seal

Product Specifications

• UPC: 78138161988
• Mounting Position: VERTICAL
• Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
• Approval: UL
• Additional Information: REMOVABLE MALE NIPPLE
• Catalog Number: EYDM-200AL
• Brand Name: UNILETS.
• Model: EYDM
• Type: DRAIN
• Turning Radius: 2.31 INCH
• Trade Size: 2 INCH
• Connection Type: MALE, FEMALE
• Material: EPOXY POWDER COATED ALMAG 35 ALUMINUM
• Catalog Description: UNILETS EYDM SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 2 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED MNPT X TAPERED FNPT, TURNING RADIUS: 2.31 IN, LENGTH: 6.13 IN, WIDTH: 2.88 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, GROUPS B, C, D, CLASS II, GROUPS E, F, G, AND CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Aluminum Sealing Bodies
• Full Technical Description: Drain Type; Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 2 Inch Trade Size; Vertical Mounting Position; 2.31 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 6.25 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381619882
• SKU Name: app eydm200al
