Appleton EYM-350 3-1/2" Malleable Conduit Seal

Overview

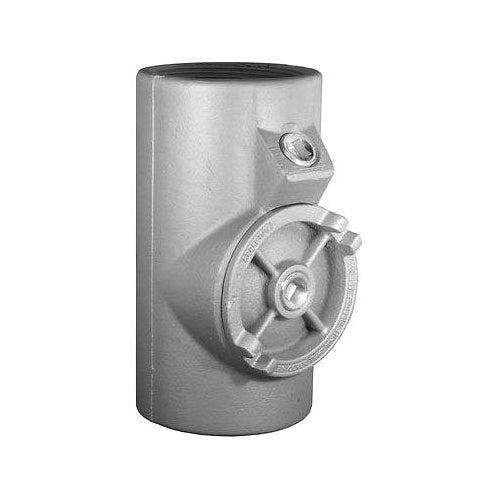

Appleton EYM-350 3-1/2" Malleable Conduit Seal

Product Specifications

• UPC: 78138113554
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, UL 886, CSA, CSA C22.2
• Additional Information: Length 11.13 Inch; Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight; Used On Threaded Rigid Metal/IMC Conduit; Application Hazardous Location
• Catalog Number: EYM-350
• Brand Name: Unilets[R]
• Model: EYM
• Turning Radius: 3.44 Inch
• Trade Size: 3-1/2 Inch
• Connection Type: Male/Female Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Mounting Position: Vertical/Horizontal
• Catalog Description: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TURNING RADIUS 3.44 INCH, TRADE SIZE 3-1/2 INCH, CONNECTION TYPE MALE, FEMALE, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, MOUNTING POSITION HORIZONTAL/VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 8.94 INCH L X 4.75 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT, INCLUDES REMOVABLE MALE NIPPLE
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3-1/2 Inch Trade Size; Vertical/Horizontal Mounting Position; 3.44 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 11.13 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381135542
• SKU Name: app eym350
