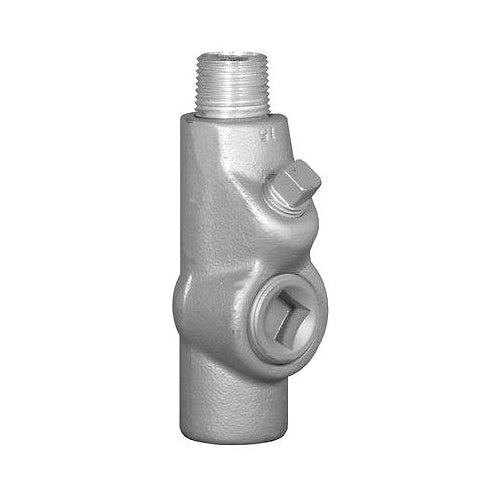

Appleton EYM50-AL 1/2" Aluminum Conduit Seal

Overview

Appleton EYM50-AL 1/2" Aluminum Conduit Seal

Product Specifications

• UPC: 78138160009
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 1203, CSA C22.2
• Additional Information: REMOVABLE MALE NIPPLE
• Catalog Number: EYM50-AL
• Brand Name: Unilet[R]
• Model: EYM
• Type: Hub
• Turning Radius: 1.06 Inch
• Trade Size: 1/2 Inch
• Connection Type: Male, Female
• Material: Epoxy Powder Coated Almag 35 Aluminum
• Catalog Description: UNILETS EY SERIES 25 PCT FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1/2 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: FEMALE THREADED X MALE THREADED, TURNING RADIUS: 1.06
• Category: Aluminum Sealing Bodies
• Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.06 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 4.72 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381600095
• SKU Name: app eym50al

Resources

• Manufacturer Spec Sheet
