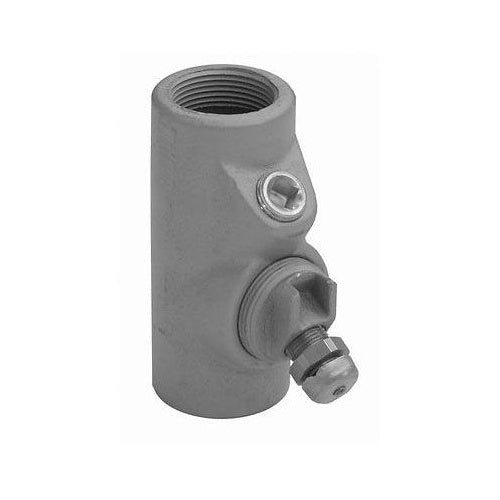

Appleton EYM75 3/4" Malleable Conduit Seal

Overview

Appleton EYM75 3/4" Malleable Conduit Seal

Product Specifications

• UPC: 78138113537
• Enclosure: Class I Div 1 and 2 Group A/B/C/D, Class II Div 1 and 2 Group E/F/G, Class III
• Additional Information: Fill Rate 25 Percent; Constructional Feature Explosionproof, Dust-Ignitionproof, Rain Tight; Used On Threaded IMC/Rigid Metal Conduit
• Catalog Number: EYM75
• Brand Name: UNILETS[R]
• Model: EYM
• Turning Radius: 1.19 Inch
• Trade Size: 3/4 Inch
• Connection Type: Male/Female
• Material: Malleable Iron
• Mounting Position: Vertical/Horizontal
• Catalog Description: UNILETS EY SERIES 25 PCT FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 3/4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: FEMALE THREADE
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.19 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 4.71 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381135375
• SKU Name: app eym75

Resources

• Manufacturer Spec Sheet
