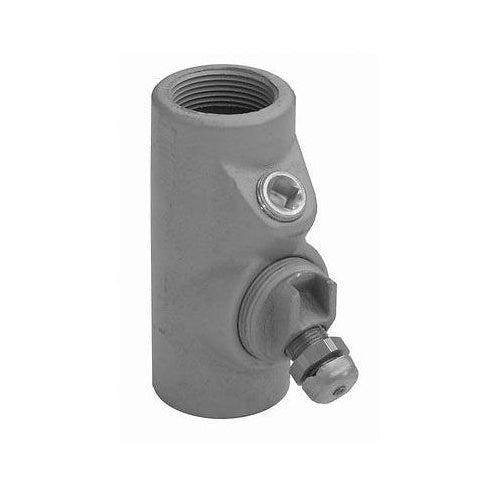

Appleton EYSEF150AL 1-1/2" Aluminum Conduit Seal

Overview

Appleton EYSEF150AL 1-1/2" Aluminum Conduit Seal

Product Specifications

• UPC: 78138180984
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Catalog Number: EYSEF150AL
• Brand Name: Unilet[R]
• Model: EYSEF
• Turning Radius: 2.31 Inch
• Trade Size: 1-1/2 Inch
• Connection Type: Female, Female
• Material: Almag 35 Aluminum
• Mounting Position: Horizontal/Vertical
• Catalog Description: UNILETS EY SERIES 40 PCT EXPANDED FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING, SIZE: 1-1/2 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: FEMALE THREADED, TURNING RADIUS: 2.31 IN, LENGTH: 6-1/4 IN, WIDTH: 3 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, DIVISION 1 AND 2 GROUPS C, D, CLASS II, DIVISION 1 AND 2 GROUPS E, F, G, CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Aluminum Sealing Bodies
• Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/2 Inch Trade Size; Vertical/Horizontal Mounting Position; 2.31 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 6.25 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYSEF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381809849
• SKU Name: app eysef150al

Resources

• Manufacturer Spec Sheet
