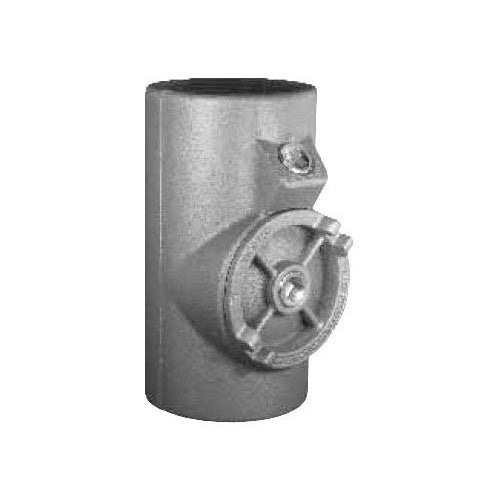

Appleton EYSEF350AL 3-1/2" Aluminum Conduit Seal

Overview

Appleton EYSEF350AL 3-1/2" Aluminum Conduit Seal

Product Specifications

• UPC: 78138180988
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Approval: UL
• Catalog Number: EYSEF350AL
• Brand Name: UNILETS.
• Model: EYSEF
• Turning Radius: 3.59 INCH
• Trade Size: 3-1/2 INCH
• Connection Type: FEMALE, FEMALE
• Material: ALMAG 35 ALUMINUM
• Mounting Position: HORIZONTAL/VERTICAL
• Catalog Description: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TURNING RADIUS 3.59 INCH, TRADE SIZE 3-1/2 INCH, CONNECTION TYPE FEMALE, MATERIAL EPOXY POWDER COATED ALMAG 35 ALUMINUM, MOUNTING POSITION HORIZONTAL/VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 9.75 INCH L X 5.25 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT
• Category: Aluminum Sealing Bodies
• Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3-1/2 Inch Trade Size; Vertical/Horizontal Mounting Position; 3.59 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 9.75 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYSEF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381809887
• SKU Name: app eysef350al

Resources

• Manufacturer Spec Sheet
