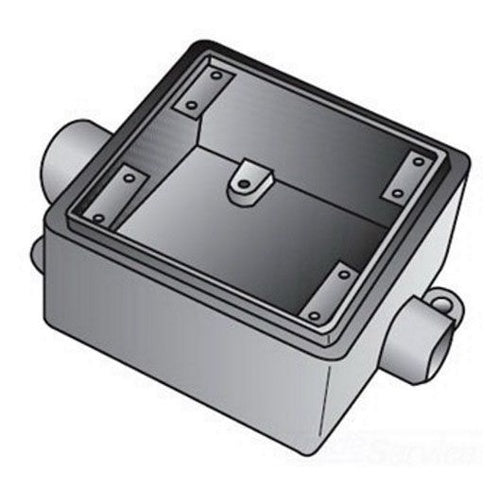

Appleton FS275A 2-Gang Aluminum FS Box

Overview

Appleton FS275A 2-Gang Aluminum FS Box

Product Specifications

• UPC: 78138134185
• Number Of Hubs: 1
• Hub Location: End
• Hub Size: 3/4 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Shape: Shallow
• Configuration Type: FS
• Mounting Hardware: Not Included
• Approval: UL 514A
• Additional Information: Application Indoor/Outdoor
• Catalog Number: FS275A
• Brand Name: Unilet[R]
• Model: FS
• Height: 5.88 Inch
• Width: 4.63 Inch
• Depth: 2 Inch
• Capacity: 32 Cu Inch
• Number Of Gangs: 2
• Catalog Description: UNILETS FS SHALLOW DEPTH 2-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 3/4 IN, CABLE ENTRY: (1) 3/4 IN HUB, CUBIC CAPACITY: 32 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.63 IN, WIDTH: 4.63 IN, DEPTH: 2 IN, FINISH: EPOXY POWDER COAT, STANDARD: UL 514 A, UL FILE NUMBER E2527, CSA C22.2 NO. 18.1, CSA 001472 CERTIFIED, NEMA FB-1, FOR USE WITH THREADED METAL CONDUIT AND IMC
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Epoxy Powder Coated Aluminum Material; 4.63 Inch; 5.88 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 1 Hub(S); 2 Gang(S); UL 514A Approval; 32 Cubic Inch Capacity; Not Included Mounting Hardware; FS Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381341851
• SKU Name: app fs275a

Resources

• Manufacturer Spec Sheet
