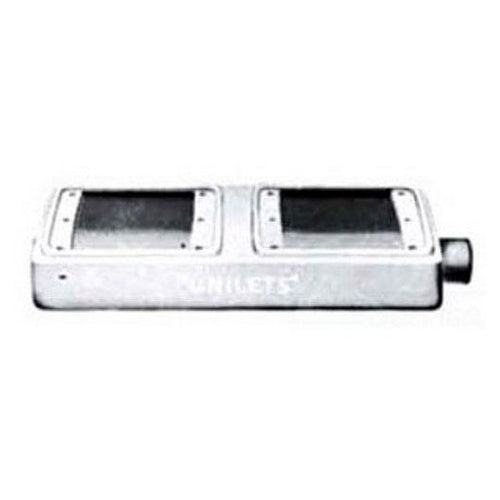

Appleton FS2T75 2-Gang FS Tandem Box

Overview

Appleton FS2T75 2-Gang FS Tandem Box

Product Specifications

• UPC: 78138134220
• Number Of Gangs: 2
• Number Of Hubs: 1
• Hub Location: End
• Hub Size: 3/4 Inch
• Material: Zinc Electroplated/Dichromate/Epoxy Powder Coated Malleable Iron
• Shape: Shallow
• Configuration Type: FS
• Mounting Hardware: Not Included
• Approval: UL 514A
• Additional Information: Application Indoor/Outdoor
• Catalog Number: FS2T75
• Brand Name: Unilet[R]
• Model: FS
• Type: Tandem
• Height: 10.94 Inch
• Width: 2.81 Inch
• Depth: 2 Inch
• Capacity: 40 Cu Inch
• Catalog Description: UNILETS FS SHALLOW DEPTH TANDEM 2-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (1) 3/4 IN HUB, CUBIC CAPACITY: 40 CU-IN, KNOCKOUTS: NO, HEIGHT: 9.44 IN, WIDTH: 4.63 IN, DEPTH: 2 IN, FINISH
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Tandem Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 10.94 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 1 Hub(S); 2 Gang(S); UL 514A Approval; 32 Cubic Inch Capacity; Not Included Mounting Hardware; FS Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
• Manufacturer: APPLETON ELECTRIC COMPANY
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381342209
• SKU Name: app fs2t75
