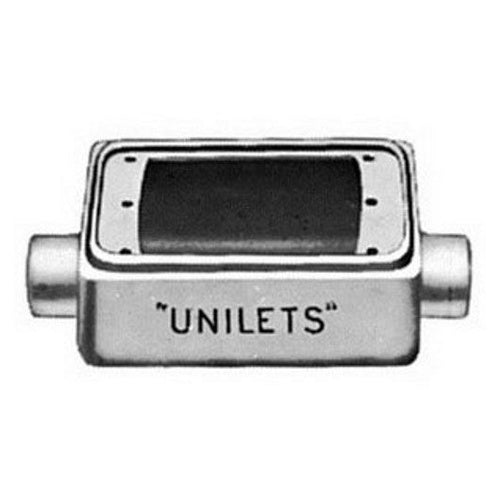

Appleton FSC175A 1-Gang Aluminum FSC Box

Overview

Appleton FSC175A 1-Gang Aluminum FSC Box

Product Specifications

• UPC: 78138134375
• Number Of Hubs: 2
• Hub Location: (1) Each Ends
• Hub Size: 3/4 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Shape: Shallow
• Configuration Type: FSC
• Mounting Hardware: Not Included
• Approval: UL 514A
• Additional Information: Application Accommodate Wiring Device, Serve as Pull Box for Conductor, Indoor/Outdoor
• Catalog Number: FSC175A
• Brand Name: Appleton
• Model: FSC
• Height: 5.88 Inch
• Width: 2.81 Inch
• Depth: 2 Inch
• Capacity: 18 Cubic Inch
• Number Of Gangs: 1
• Catalog Description: UNILETS FSC SHALLOW DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 2, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 3/4 IN, CABLE ENTRY: (2) 3/4 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Epoxy Powder Coated Aluminum Material; 2.81 Inch; 5.88 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL 514A Approval; 18 Cubic Inch Capacity; Not Included Mounting Hardware; FSC Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
• Manufacturer: APPLETON ELECTRIC COMPANY
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381343756
• SKU Name: app fsc175a

Resources

• Manufacturer Spec Sheet
