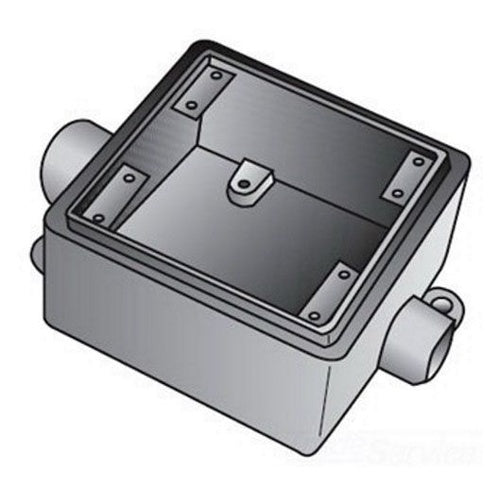

Appleton FSC2100 2-Gang Malleable FSC Box

Overview

Appleton FSC2100 2-Gang Malleable FSC Box

Product Specifications

• UPC: 78138134465
• Number Of Hubs: 2
• Hub Location: (1) Each End
• Hub Size: 1 Inch
• Material: Zinc Electroplated/Dichromate/Epoxy Powder Coated Malleable Iron
• Shape: Shallow
• Configuration Type: FSC
• Mounting Hardware: Not Included
• Approval: UL 514A
• Additional Information: Application Indoor/Outdoor
• Catalog Number: FSC2100
• Brand Name: Unilet[R]
• Model: FS
• Height: 6.31 Inch
• Width: 4.63 Inch
• Depth: 2 Inch
• Capacity: 32 Cu Inch
• Number Of Gangs: 2
• Catalog Description: UNILETS FSC SHALLOW DEPTH 2-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 2, MATERIAL: MALLEABLE IRON, SIZE: 1 IN, CABLE ENTRY: (2) 1 IN HUB, CUBIC CAPACITY: 32 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.63 IN, WIDTH: 4.63 IN, DEPTH: 2 IN, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 514 A, UL FILE NUMBER E2527, CSA C22.2 NO. 18.1, CSA 001472 CERTIFIED, NEMA FB-1, FOR USE WITH THREADED METAL CONDUIT AND IMC
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 4.63 Inch; 6.31 Inch; 2 Inch; Shallow Shape; 1 Inch Hub Size; 2 Hub(S); 2 Gang(S); UL 514A Approval; 32 Cubic Inch Capacity; Not Included Mounting Hardware; FSC Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381344654
• SKU Name: app fsc2100

Resources

• Manufacturer Spec Sheet
