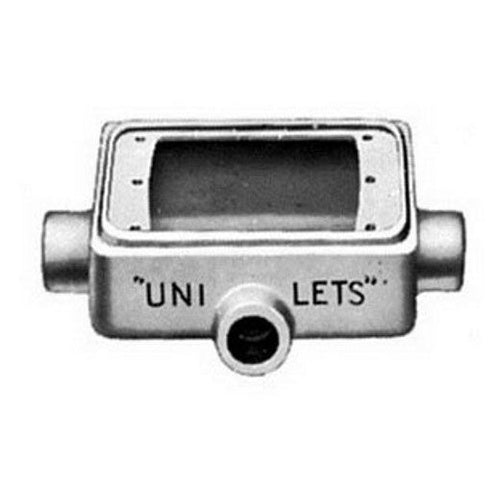

Appleton FSCT175 1-Gang Malleable FSCT Box

Overview

Appleton FSCT175 1-Gang Malleable FSCT Box

Product Specifications

• UPC: 78138134595
• Hub Size: 3/4 Inch
• Material: Zinc Electroplated/Dichromate/Epoxy Powder Coated Malleable Iron
• Shape: Shallow
• Configuration Type: FSCT
• Mounting Hardware: Not Included
• Approval: UL 514A
• Additional Information: Application Indoor/Outdoor
• Catalog Number: FSCT175
• Brand Name: Appleton
• Model: FSCT
• Height: 5.88 Inch
• Depth: 2 Inch
• Capacity: 18 Cubic Inch
• Number Of Gangs: 1
• Hub Location: Ends
• Catalog Description: UNILETS FSCT SHALLOW DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 3, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (3) 3/4 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81 IN, DEPTH: 2 IN, FINISH: TR
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 5.88 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 3 Hub(S); 1 Gang(S); UL 514A Approval; 18 Cubic Inch Capacity; Not Included Mounting Hardware; Fsct Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381345958
• SKU Name: app fsct175

Resources

• Manufacturer Spec Sheet
