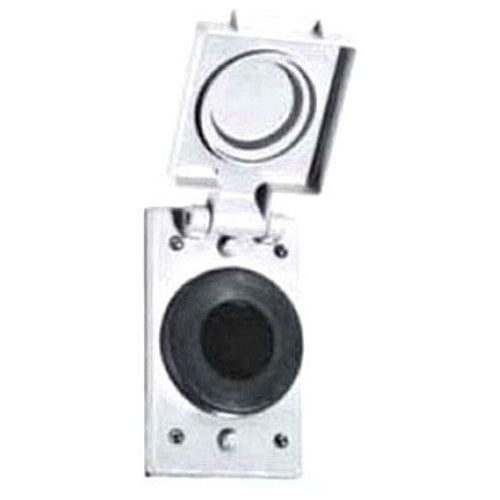

Appleton FSKJ5-15 15A-125V Single Receptacle & Cover

Overview

Appleton FSKJ5-15 15A-125V Single Receptacle & Cover

Product Specifications

• UPC: 78138146123
• Mounting: BOX
• Additional Information: APPLICABLE STANDARD NEC 410-57, NEMA WD-1
• Catalog Number: FSKJ5-15
• Brand Name: Appleton.
• Type: SINGLE RECEPTACLE
• Device Type: 125 V 15 AMPERE RECEPTACLE
• Number Of Gangs: 1
• Size: 4.56 INCH L X 2.81 INCH W X 1.16 INCH H
• Material: DIE CAST COPPER FREE ALUMINUM
• Finish: EPOXY POWDER COATED
• Catalog Description: RECEPTACLE WITH BOX COVER, NUMBER OF POLES: 2, NUMBER OF WIRES: 3, AMPERAGE RATING: 15 AMP, VOLTAGE RATING: 125 V, MATERIAL: DIECAST COPPERFREE (4/10 OF 1 PCT) ALUMINUM, NEMA RATING: NEMA 5-15R, MOUNTING: BOX, STANDARD: NEMA WD-1 AND WD-
• Category: Pin & Sleeve Devices
• Full Technical Description: Copper-Free Aluminum Material; 2.81 Inch Width X 4.56 Inch Height Size; Epoxy Powder Coated Finish; 1 Gang(S); UL 514A Approval; Box Mounting; Single Lid Type; 1-3/8 Inch Diameter Single Locking/Non-Locking Blade Plug Device Opening; Voltage Rating 125 Volt; Current Rating 15 Amp; Enclosure Rating NEMA 5-15R/Fb-1; Number of Poles 2; Number of Wires 3; Application Wet Location, Commercial/Industrial/Residential, General Purpose; Applicable Standard Nec/Cec; FS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Weatherproof Device Box Cover with Lid
• Unspsc: 39121315
• UPC 12 Digit: 781381461238
• SKU Name: app fskj515

Resources

• Manufacturer Spec Sheet
