Appleton G-AM775P-48 400W Metal-Halide Floodlight

Overview

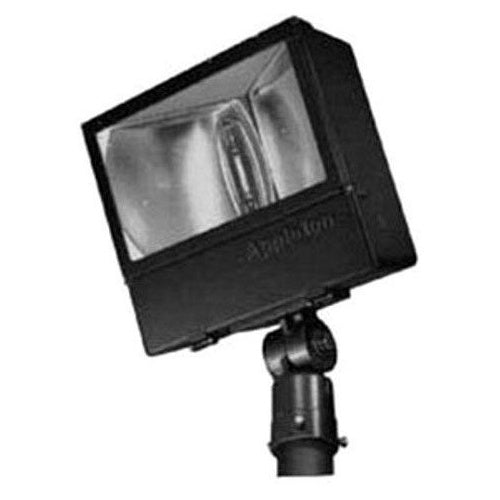

Appleton G-AM775P-48 400W Metal-Halide Floodlight

Product Specifications

• UPC: 78138190232
• Epa: 1.9 SQ FT
• Mounting: SLIPFITTER, 2 INCH OR 2-1/2 INCH OD TENON
• Housing Material: COPPER FREE PRESSURE CAST ALUMINUM
• Finish: ARCHITECTURAL BRONZE POLYESTER
• Size: 17-1/16 INCH W X 7-3/8 INCH D X 25 INCH H
• Approval: UL 844, UL 1598-A
• Additional Information: ALZAK[R] ALUMINUM PARABOLIC REFLECTOR; APPLICATION GENERAL DUTY; GASKET MATERIAL SILICONE RUBBER; LENS MATERIAL THERMAL SHOCK AND IMPACT RESISTANT GLASS; SOCKET MATERIAL PORCELAIN WITH NICKEL PLATED HEAVY GAUGE BRASS CONTACT
• Catalog Number: G-AM775P-48
• Brand Name: Areamaster[T]
• Model: G-AM
• Lamp Type: MOGUL BASE METAL HALIDE
• Lamp Wattage: 400 W
• Lamp/Ballast Voltage: 480 V
• Lamp Included: 0
• Ballast Type: PULSE START, SUPER CONSTANT WATTAGE AUTOTRANSFORMER
• Catalog Description: APPLETON AREAMASTER 250/400 INTEGRALLY BALLASTED FLOODLIGHT, FIXTURE TYPE: POLE/SLIP FIT MOUNT, LAMP TYPE: 400 WTT MOGUL PULSE START METAL HALIDE, LAMP WATTAGE: 400 WTT, VOLTAGE RATING: 480 V, NUMBER OF LAMPS: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM LENS DOOR, SILICONE RUBBER GASKET, PORCELAIN SOCKET, STAINLESS STEEL BOLTS, FIXTURE WATTAGE: 454 WTT, AMPERAGE RATING: 0.9 AMP STARTING, 1 AMP OPERATING AT 480 V, LENGTH: 433.4 MM, WIDTH: 187.3 MM, HEIGHT: 635 MM, HOUSING FINISH: ARCHITECTURAL BRONZE POLYESTER, HOUSING MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, AMBIENT TEMPERATURE RANGE: 55 DEG C, TEMPERATURE RANGE: 115 DEG C SUPPLY WIRE, LENS MATERIAL: GLASS, BALLAST TYPE: SUPER CONSTANT WATTAGE AUTOTRANSFORMER (S. C.W.A.), BALLAST QUANTITY: 1, REFLECTOR/REFRACTOR: ALZAK FINISHED ALUMINUM REFLECTOR, FREQUENCY RATING: 60 HZ, ENCLOSURE: IP66, STANDARD: NEC: FOR GENERAL, MARINE AND HAZARDOUS LOCATIONS CLASS I, DIVISION 2, GROUPS A, B, C, D, CLASS I, ZONE 2, AEX NR, GROUPS IIA, IIB, IIC, UL LISTED: E10794, 1598, 1598A, 844, FOR SHOPPING MALLS, PARKING LOTS, SPORTS AREAS, SECURITY LIGHTING, INDUSTRIAL PROCESS LIGHTING
• Category: Hid Floodlights
• Full Technical Description: 16.92 Inch Width X 7.76 Inch Depth Size; Architectural Bronze Polyester Finish; UL 844/1598/1598A, CSA C22.2, CSA (Canada and Us) App
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Floodlight Fixture
• Unspsc: 39111524
• UPC 12 Digit: 781381902328
• SKU Name: app gam775p48
