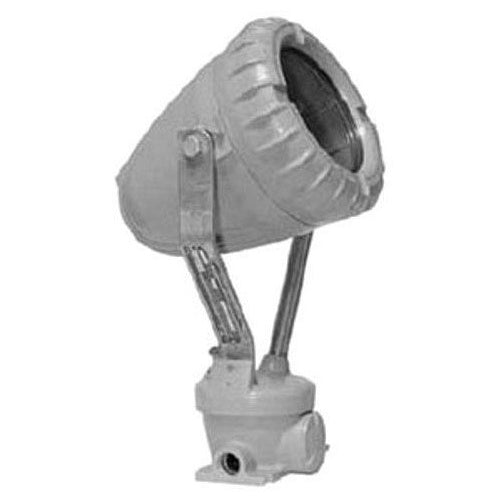

Appleton G-EFJB-30 Explosion-Proof Flood Light

Product Specifications

• Base: Medium
• Standard: Class I, Group D
• Type: EF Series Explosionproof Floodlight
• Brand Name: Appleton
• Enclosure: Cast Aluminum
• Fixture Type: Flood Light
• Lamp Type: 300 WTT R40 Incandescent
• Mounting: Yoke
• Number Of Lamps: 1
• Shape: R40
• Special Features: Permanent base; Floodlights feature rugged, lightweight cast aluminum construction and are factory wired and sealed; No external seals are required; Use medium-base 150 WTT PAR-38, R-40 or 300 WTT R40 reflector lamps; Terminal block has pressure terminal for connecting rubber covered cable to floodlight; Cable connector takes a 0.375 - 0.5 IN outside diameter cord; Permanent base model has explosionproof junction wiring chamber with 3/4 IN horizontal feed-through hubs; Vertical adjustment to 135 DEG; Horizontal to 345 DEG; High-strength aluminum alloy yoke; Aluminum enamel finished housing, yoke and wiring compartment; Thermal shock and impact resistant glass lens
• Catalog Description: EF SERIES EXPLOSIONPROOF FLOODLIGHT, LAMP TYPE: 300 WTT R40 INCANDESCENT, NUMBER OF LAMPS: 1, SHAPE: R40, BASE: MEDIUM, MOUNTING: YOKE, ENCLOSURE: CAST ALUMINUM, FIXTURE TYPE: FLOOD LIGHT, DIMENSIONS: 10.5 IN LENGTH X 17.50 IN HEIGHT, STANDARD: CLASS I, GROUP D, FOR 0.314 IN CONDUIT, AIRCRAFT SERVICE AREAS, OIL AND GAS LOADING DOCKS, DISTILLERIES
• Category: Incandescent Floodlights
• Full Technical Description: Permanent Base, PAR38/R-40 Type; Cast Aluminum (Housing), Impact Resistant Glass (Lens) Material; 10.5 Inch Width X 17.5 Inch Height Size; 0.314 Inch Cord Length; UL 844/1598 Approval; Aircraft Service Area, Oil and Gas Loading Dock, Hazardous Location Application; Class I Group C D Enclosure; 150 Watt Lamp Wattage; Explosionproof; Number of Wires 2; Number of Poles 3; EF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Portable HID Floodlight
• Unspsc: 39111611
• UPC 12 Digit: 781381426558
• SKU Name: app gefjb30
