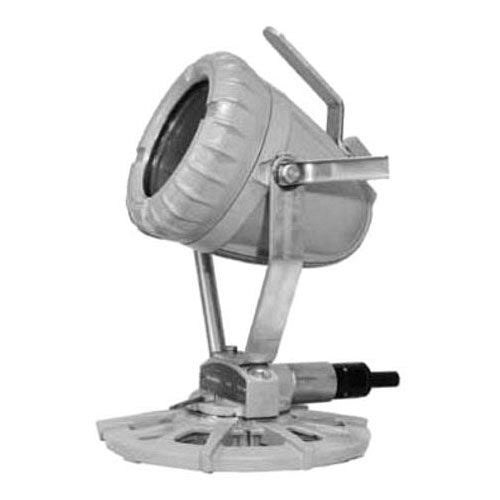

Appleton G-EFWB-30 Explosion-Proof Flood Light

Overview

Appleton G-EFWB-30 Explosion-Proof Flood Light

Product Specifications

• UPC: 78138142660
• Enclosure: Class 1 Group C D
• Application: Aircraft Service Area, Oil and Gas Loading Dock, Distilleries
• Approval: UL 844/1598
• Additional Information: Yoke Material High Strength Aluminum Alloy; Cable Diameter 0.375 to 0.500 Inch; Finish Aluminum Enamel
• Catalog Number: G-EFWB-30
• Model: EF
• Type: Medium Base Incandescent
• Constructional Feature: Explosionproof
• Lamp Wattage: 150 W
• Cord Type: 16/3 AWG
• Material: Cast Aluminum
• Size: 12 Inch W x 13.19 Inch D x 16.75 Inch H
• Catalog Description: EF SERIES EXPLOSIONPROOF PORTABLE FLOODLIGHT, LAMP TYPE: 300 WTT R40 INCANDESCENT, NUMBER OF LAMPS: 1, SHAPE: R40, BASE: MEDIUM, MOUNTING: YOKE, ENCLOSURE: CAST ALUMINUM, FIXTURE TYPE: FLOOD LIGHT, DIMENSIONS: 13.19 IN LENGTH X 16-3/4 IN HEIGHT, STANDARD: CLASS I, GROUP D, FOR AIRCRAFT SERVICE AREAS, OIL AND GAS LOADING DOCKS, DISTILLERIES, ACCOMMODATES 0.375 - 0.500 IN CABLE
• Category: Incandescent Floodlights
• Full Technical Description: Medium Base, PAR38/R-40 Type; Cast Aluminum (Housing), Impact Resistant Glass (Lens) Material; 12 Inch Width X 13.19 Inch Depth X 16.75 Inch Height Size; 0.375 to 0.5 Inch Cord Length; UL 844/1598 Approval; Aircraft Service Area, Oil and Gas Loading Dock, Hazardous Location Application; Class I Group C D Enclosure; 150 Watt Lamp Wattage; Explosionproof; 16/3 AWG S/So Cord Type; Number of Wires 2; Includes Wheelbase and Handle; EF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Portable HID Floodlight
• Unspsc: 39111611
• UPC 12 Digit: 781381426602
• SKU Name: app gefwb30
