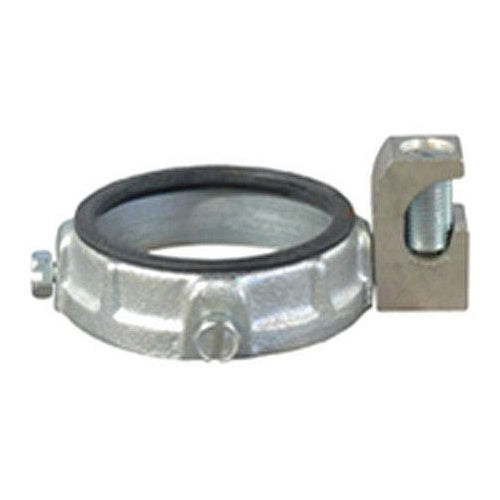

Appleton GIB-600LS-20AC 6" Malleable Grounding Bushing

Overview

Appleton GIB-600LS-20AC 6" Malleable Grounding Bushing

Product Specifications

• Catalog Description: GROUNDING BUSHING, TYPE THREADLESS, SET SCREW, TRADE SIZE 6 INCH, WIRE SIZE 14 AWG SOLID TO 2/0 AWG STANDARD, LUG TYPE LAY-IN, ALUMINUM, CONDUCTOR MATERIAL COPPER/ALUMINUM, THROAT TYPE INSULATED, DIAMETER 7.25 INCH, HEIGHT 1.31 INCH, MATERIAL ZINC PLATED MALLEABLE IRON BODY, ZINC PLATED STEEL CLAMPING SCREW/SET SCREW, APPROVAL UL 467, CSA C22.2, USED ON THREADLESS RIGID METAL CONDUIT/IMC, USED WITH A LOCKNUT TO TERMINATE CONDUIT AT AN ENCLOSURE, LUG USED TO CONNECT BONDING JUMPER TO A NEUTRAL BUS BAR
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Threadless, Set Screw Type; Zinc Plated Malleable Iron (Body), Zinc Plated Steel (Clamping/Set Screw) Material; 1.31 Inch; Imc/Rigid Conduit Used on; 14 AWG Solid to 2/0 AWG Stranded Wire Size; Copper/Aluminum Conductor Material; UL 467/514B, CSA C22.2 Approval; 7.25 Inch Diameter; 6 Inch Trade Size; Insulated Throat Type; Tin Plated Aluminum, Lay-in Lug Type; Turning Radius 4.44 Inch; Temperature Rating 302 Deg F; Includes Lug; Applicable Standard Nec/Cec; GIB-LS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381091619
• SKU Name: app gib600ls20ac
