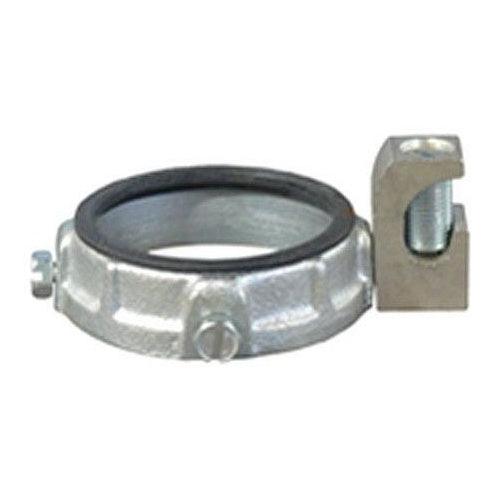

Appleton GIB-600LS-25AC 6" Malleable Grounding Bushing

Overview

Appleton GIB-600LS-25AC 6" Malleable Grounding Bushing

Product Specifications

• Brand Name: Appleton
• Finish: Zinc Electroplated
• Material: Malleable Iron
• Size: 6 IN
• Special Features: Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Provided with a steel, zinc plated set-screw allowing fitting to lock bushing in any desired position; Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
• Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
• Temperature Rating: 150 DEG C
• Type: Insulated Grounding Bushing With Aluminum Lay-In-Lug
• Catalog Description: INSULATED GROUNDING BUSHING WITH ALUMINUM LAY-IN-LUG, SIZE: 6 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATED BODY, TIN PLATED LUG, TEMPERATURE RATING: 150 DEG C, DIMENSIONS: 1.31 IN HEIGHT X 7-1/4 IN DIAMETER, CABLE SIZE: 6 AWG - 250 KCMIL STRANDED, TURNING RADIUS: 4.88 IN, STANDARD: UL 467, E6581, CSA C22.2 NO. 41, NEMA FB-1, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Threadless, Set Screw Type; Zinc Plated Malleable Iron (Body), Zinc Plated Steel (Clamping/Set Screw) Material; 1.31 Inch; Imc/Rigid Conduit Used on; 6 AWG to 250 kcmil Stranded Wire Size; Copper/Aluminum Conductor Material; UL 467/514B, CSA C22.2 Approval; 7.25 Inch Diameter; 6 Inch Trade Size; Insulated Throat Type; Tin Plated Aluminum, Lay-in Lug Type; Turning Radius 4.88 Inch; Temperature Rating 302 Deg F; Includes Lug; Applicable Standard Nec/Cec; GIB-LS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381091626
• SKU Name: app gib600ls25ac
