Appleton GRE50-A 1/2" Aluminum Unilet

Overview

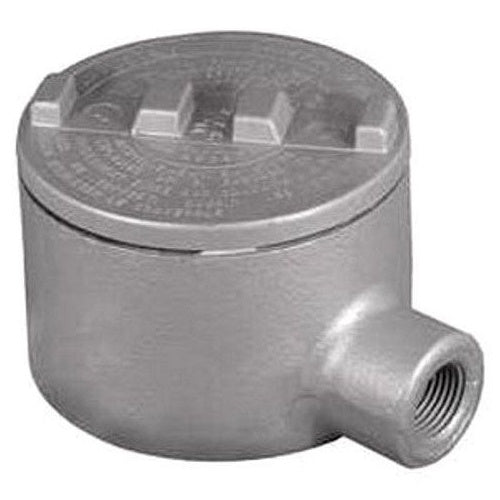

Appleton GRE50-A 1/2" Aluminum Unilet

Product Specifications

• UPC: 78138143760
• Capacity: 18 Cu Inch
• Shape: Round
• Cover Type: Externally Threaded
• Cover Opening Diameter: 3.38 Inch
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: UL, CSA C22.2
• Additional Information: Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• Catalog Number: GRE50-A
• Brand Name: Unilet[R]
• Model: GRE
• Style: C
• Hub Size: 1/2 Inch
• Hub Type: External
• Number Of Hubs: 1
• Hub Location: Dead End
• Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 1/2 IN, CABLE ENTRY: (1) 1/2 IN GRE HUB, CUBIC CAPACITY: 18 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.38 IN, FORM NUMBER: 1, HEIGHT: 3-3/4
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; Round Shape; 1/2 Inch Hub Size; 1 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III, NEMA 3/4/4X Enclosure; Externally Threaded Cover Type; 18 Cubic Inch Capacity; E Style; Dead End Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Aluminum Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381437608
• SKU Name: app gre50a

Resources

• Manufacturer Spec Sheet
