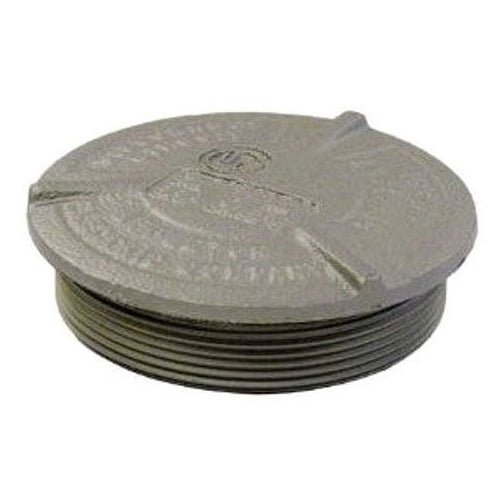

Appleton GRJSK Unilet Surface Cover

Overview

Appleton GRJSK Unilet Surface Cover

Product Specifications

• UPC: 78138144100
• Used On: GRJS Universal Conduit Outlet Box
• Approval: UL 886
• Additional Information: Capacity 7.3 Cu Inch
• Catalog Number: GRJSK
• Model: GRJS
• Type: Surface
• Installation: Externally Threaded
• Cover Opening Diameter: 2.56 Inch
• Material: Copper Free Aluminum
• Finish: Epoxy Powder Coated
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Catalog Description: SURFACE BOX COVER, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, FINISH: EPOXY POWDER COAT, MOUNTING: BOX, COVER OPENING: 2.56 IN, FOR USE WITH 7.13 CU-IN CAPACITY UNILETS GRJS UNIVERSAL CONDUIT OUTLET BOXES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Surface Type; Copper-Free Aluminum Material; Epoxy Powder Coated Finish; Grjs Universal Conduit Outlet Box Used on; Externally Threaded Installation; UL, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 2.56 Inch Cover Opening Diameter; UNILETS[R] Brand; Capacity 7.3 Cubic Inch; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Metal Conduit; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GRJS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box Cover
• Unspsc: 39121304
• UPC 12 Digit: 781381441001
• SKU Name: app grjsk

Resources

• Manufacturer Spec Sheet
