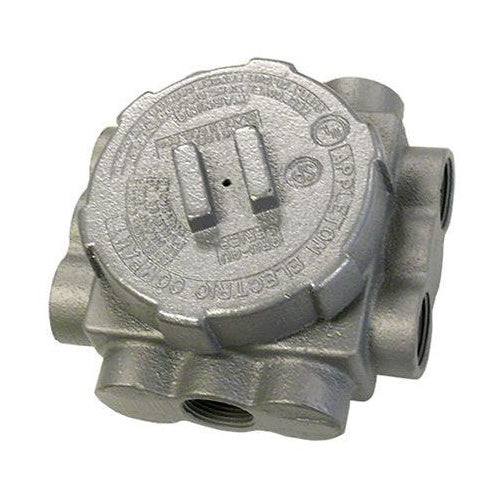

Appleton GRUJ-1P Junction Unilet w/Plug

Overview

Appleton GRUJ-1P Junction Unilet w/Plug

Product Specifications

• UPC: 78138144565
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 3.25 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Body), Epoxy Powder Coated Copper-Free Aluminum (Cover)
• Approval: UL 886/1203, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Corrosion Resistant, Dust Ignitionproof; Includes Cover; Application General Purpose Wiring, Pulling of Wire, Connect Conduit Length and Change Direction of Conduit Run, Provide Access for Maintenance
• Catalog Number: GRUJ-1P
• Brand Name: Unilets[R]
• Model: GRUJ
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 7
• Hub Location: (4) Side, (2) Top, (1) Down
• Capacity: 25 Cubic Inch
• Catalog Description: UNILETS GRUJ OUTLET BOX, NUMBER OF OUTLET: 7, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (2) 3/4 IN 3/4 IN HUB ON EACH SIDE, (2) 3/4 IN 3/4 IN HUB ON TOP, (1) 3/4 IN 3/4 IN HUB AT BOTTOM, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO,
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 3/4 Inch Hub Size; 7 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 25 Cubic Inch Capacity; (4) Side, (2) Top, (1) Down Hub Location; External Hub Type; 3.25 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GRUJ Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381445658
• SKU Name: app gruj1p
