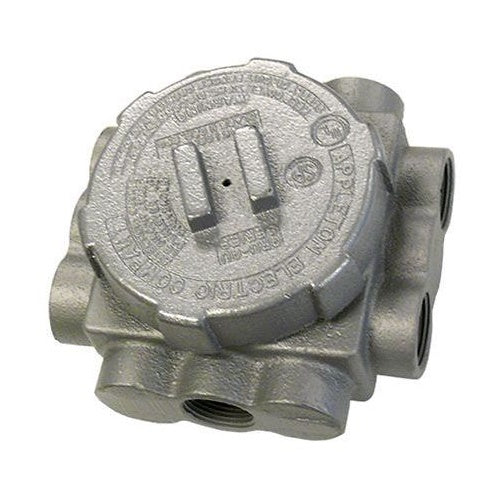

Appleton GRUJ-3P Junction Unilet w/Plug

Overview

Appleton GRUJ-3P Junction Unilet w/Plug

Product Specifications

• UPC: 78138144585
• Shape: Round
• Number Of Plugs: 8
• Cover Type: Internally Threaded
• Cover Opening Diameter: 3.25 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Approval: UL 886
• Additional Information: Includes Cover; Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• Catalog Number: GRUJ-3P
• Brand Name: Unilet[R]
• Model: GRUJ
• Hub Size: (7) 3/4 Inch, (4) 1 Inch
• Hub Type: External
• Number Of Hubs: 11
• Hub Location: (4) Side, (2) Top, (1) Down, (4) Back
• Capacity: 25 Cu Inch
• Catalog Description: UNILETS GRUJ OUTLET BOX, NUMBER OF OUTLET: 11, MATERIAL: MALLEABLE IRON, SIZE: 3/4 - 1 IN, CABLE ENTRY: (2) 3/4 IN HUB ON EACH SIDE, (2) 3/4 IN HUB ON TOP, (1) 3/4 IN HUB AT BOTTOM, (4) 1 IN HUB AT BACK, CUBIC CAPACITY: 25 CU-IN, KNOCKOUT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; (7) 3/4 Inch, (4) 1 Inch Hub Size; 11 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 25 Cubic Inch Capacity; (4) Side, (2) Top, (1) Down, (4) Back Hub Location; External Hub Type; 3.25 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover; Application General Purpose Wiring, Indoor and Outdoor, Provide Access to Conductor For Pulling, Splicing, Maintenance, Connect Conduit Length and Change Direction of Conduit Run; Applicable Standard Nec/Cec; GRUJ Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381445856
• SKU Name: app gruj3p

Resources

• Manufacturer Spec Sheet
