Appleton GRUSE100 1" Junction Unilet

Overview

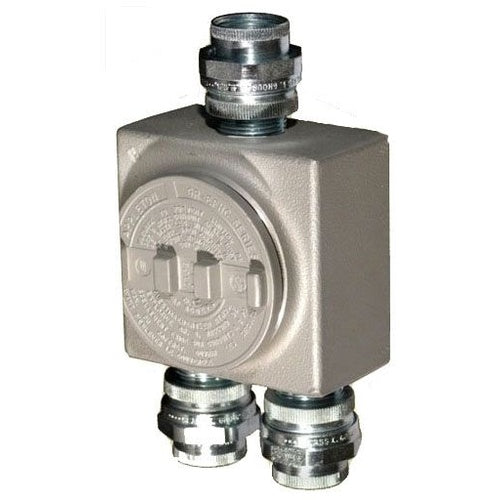

Appleton GRUSE100 1" Junction Unilet

Product Specifications

• UPC: 78138114235
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Copper Free Aluminum
• Approval: UL 886
• Additional Information: Includes Union Hub
• Catalog Number: GRUSE100
• Model: GRUSE
• Hub Size: 1 Inch
• Number Of Hubs: 3
• Capacity: 29 Cu Inch
• Shape: Square
• Cover Opening Diameter: 3.75 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Catalog Description: UNILETS GRUSE OUTLET BOX WITH UNION HUBS, NUMBER OF OUTLET: 3, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 1 IN, CABLE ENTRY: (3) 1 IN UNION HUB, CUBIC CAPACITY: 29 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3-3/4 IN, HEIGHT:
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Copper-Free Aluminum Material; Square Shape; 1 Inch Hub Size; 3 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 29 Cubic Inch Capacity; (3) Side Hub Location; External Hub Type; 3.75 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Internal Ground Screw, Union Hub; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GRU Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381142359
• SKU Name: app gruse100

Resources

• Manufacturer Spec Sheet
