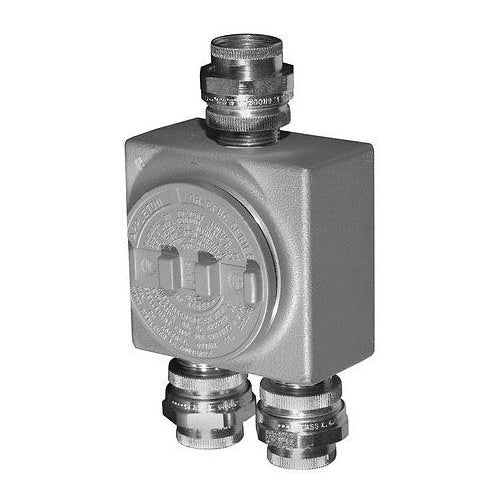

Appleton GRUSE50 1/2" Junction Unilet

Overview

Appleton GRUSE50 1/2" Junction Unilet

Product Specifications

• UPC: 78138144620
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 3.25 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Approval: UL 886
• Additional Information: Includes Union Hub; Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• Catalog Number: GRUSE50
• Brand Name: Unilet[R]
• Model: GRUSE
• Hub Size: 1/2 Inch
• Hub Type: External
• Number Of Hubs: 3
• Hub Location: (3) Side
• Capacity: 19 Cu Inch
• Catalog Description: UNILETS GRUSE OUTLET BOX WITH UNION HUBS, NUMBER OF OUTLET: 3, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 1/2 IN, CABLE ENTRY: (3) 1/2 IN UNION HUB, CUBIC CAPACITY: 19 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3-1/4 IN, WIDTH
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Square Shape; 1/2 Inch Hub Size; 3 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 19 Cubic Inch Capacity; (3) Side Hub Location; External Hub Type; 3.25 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Internal Ground Screw, Union Hub; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GRU Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381446204
• SKU Name: app gruse50

Resources

• Manufacturer Spec Sheet
