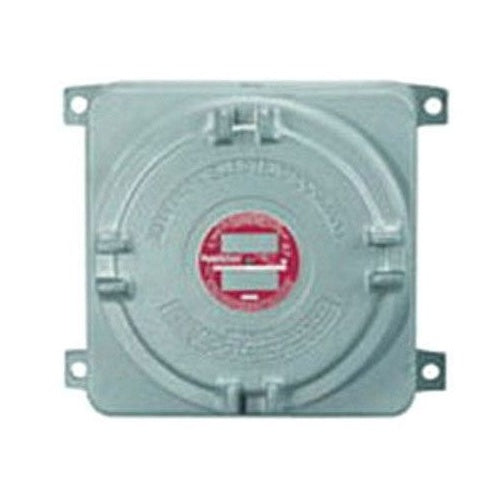

Appleton GUBB-33 Junction Box w/Cover

Overview

Appleton GUBB-33 Junction Box w/Cover

Product Specifications

• UPC: 78138132451
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/4/7B/7C/7D/9E/9F/9G
• Body Material: Malleable Iron
• Body Finish: Zinc Electroplated/Chromate/Epoxy Powder Coated
• Cover Material: Malleable Iron
• Cover Finish: Zinc Electroplated/Chromate/Epoxy Powder Coated
• Mounting: Lug
• Approval: UL 886/1203, CSA C22.2
• Additional Information: Constructional Feature Corrosion Resistant; Application Indoor/Outdoor
• Catalog Number: GUBB-33
• Brand Name: Unilet[R]
• Model: GUBB
• Hub Size: 2 Inch
• Overall Size: 12 Inch L x 12 Inch W x 7.75 Inch D
• Inner Size: 10.75 Inch L x 10.75 Inch W x 3.94 Inch D
• Wall Thickness: 0.56 Inch (Top/Bottom/Side), 0.81 Inch (Back)
• Cover Opening Diameter: 9.69 Inch
• Catalog Description: UNILETS GUBB CAST JUNCTION BOX, MATERIAL: MALLEABLE IRON, SIZE: 9.69 IN COVER OPENING, MOUNTING: LUGS, CUBIC CAPACITY: 455 CU-IN, FORM NUMBER: 3, WIDTH: 12 IN, DEPTH: 7-3/4 IN, HEIGHT: 12 IN, COVER OPENING: 9.69 IN, STANDARD: UL 886 (UL 1203), UL FILE NUMBER E10444, CSA C22.2 NO. 25, C22.2 NO. 30, 025875 CERTIFIED, CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, NEMA 7BCD, 9EFG, FOR USE WITH UNILETS THREADED METAL CONDUIT
• Category: Cast Boxes
• Full Technical Description: 12 Inch Length X 12 Inch Width X 7.75 Inch Depth Overall Size; 10.75 Inch Length X 10.75 Inch Width X 3.94 Inch Depth Inner Size; 2 Inch Hub Size; UL 886/1203, CSA C22.2 Approval; (4) Lug Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/4/7BCD/9EFG Enclosure; Malleable Iron Body Material; Copper-Free Aluminum Cover Material; 0.63 Inch Wall Thickness; Zinc Electroplated/Chromate/Epoxy Powder Coated Body Finish; 9.69 Inch Cover Opening Diameter; Epoxy Powder Coated Cover Finish; Capacity 455 Cubic Inch; Used on Threaded Metal Conduit; Application Indoor and Outdoor; Applicable Standard Nec/Cec; GUBB Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 781381324519
• SKU Name: app gubb33
