Appleton GUBBMP22 Mounting Plate Assembly

Overview

Appleton GUBBMP22 Mounting Plate Assembly

Product Specifications

• UPC: 78138160503
• Catalog Number: GUBBMP22
• Model: GUBB
• Type: Mounting Plate

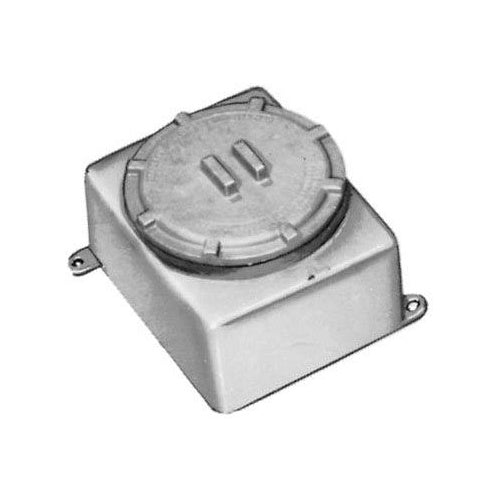

• Used On: GUBB-22 Type Junction Box
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Enclosure: Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E, F, G, Class III NEMA 3/3R/4
• Additional Information: Size 6.5 Inch W x 6.5 Inch H x 0.13 Inch Thk; Material Aluminum
• Catalog Description: CAST JUNCTION BOX MOUNTING PLATE, HEIGHT 6.5 INCH, WIDTH 6.5 INCH, MATERIAL 0.13 INCH ALUMINUM, ENCLOSURE TYPE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/4 GUBB SERIES CAST JUNCTION BOX, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF
• Category: Cast Boxes
• Full Technical Description: Mounting Plate, Form 2 Type; GUBB22/22A Cast Junction Box Used on; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/4 Enclosure; Explosionproof, Dust Ignitionproof; Overall Dimension 6.5 Inch Width X 6.5 Inch Height; Thickness 0.13 Inch; Material Aluminum; Includes (4) Stand-Off, (4) Mounting Screw; Applicable Standard Nec/Cec, UL 886, CSA C22.2; GUBB Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Box/Enclosure General Accessories
• Unspsc: 31162307
• UPC 12 Digit: 781381605038
• SKU Name: app gubbmp22

Resources

• Manufacturer Spec Sheet
