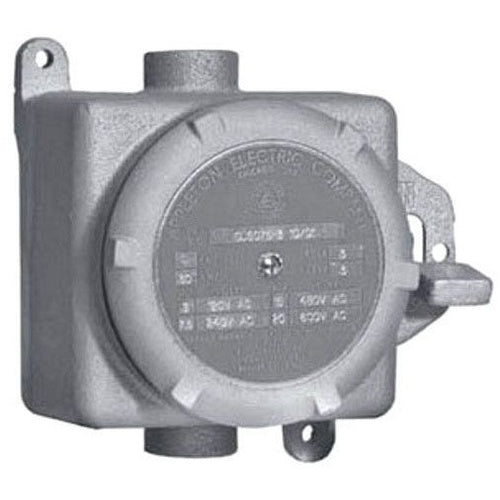

Appleton GUSC75-3 3P Tumbler Switch

Overview

Appleton GUSC75-3 3P Tumbler Switch

Product Specifications

• UPC: 78138145270
• Hub Size: 3/4 Inch
• Enclosure Material: ASTM A47-77 Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Enclosure: Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7D/9EFG
• Approval: UL 894/1203
• Additional Information: Application Heavy-Duty Usage, Controlling Motors and Other Apparatus, Paint and Varnish Plants, Grain Elevators, Coal or Grain Processing, Gasoline Bulk Loading Terminals, Metal Finishing Areas
• Catalog Number: GUSC75-3
• Brand Name: Unilet[R]
• Model: GUSC
• Type: Feed Through
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 600 VAC
• Current Rating: 30 Ampere
• Contact Configuration: 3-Pole
• Catalog Description: UNILETS GUSC SERIES HEAVY-DUTY TUMBLER SWITCH, VOLTAGE RATING: 600 VAC, AMPERAGE RATING: 30 AMP, NUMBER OF POLES: 3, ENCLOSURE: NEMA 7D, 9EFG, MOUNTING: SURFACE MOUNT WITH 3/4 IN FEED-THRU HUB, HP RATING: 7-1/2 HP AT 240 VAC, 15 HP AT 480 VAC, 20 HP AT 600 VAC, MATERIAL: MALLEABLE IRON BODY, COPPERFREE ALUMINUM COVER, FINISH: BODY: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COVER: NATURAL, HEIGHT: 4.63 IN, WIDTH: 4.19 IN, DEPTH: 3.94 IN, STANDARD: CLASS I, DIVISION 1 AND 2, GROUP D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G , CLASS III, FOR CONTROLLING MOTORS AND OTHER APPARATUS
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: 3-Pole Contact Configuration; 3/4 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 894 Approval; 240/480/600 Volt AC Voltage Rating; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7D/9EFG Enclosure; 30 Amp Current Rating; Explosionproof, Dust Ignitionproof; Power Rating 7-1/2 HP at 240 Volt AC, 15 HP at 480 Volt AC, 20 HP at 600 Volt AC; Overall Dimension 6.06 Inch Width X 3.94 Inch Depth X 5.63 Inch Height; Used on Imc/Rigid Metal Conduit; Application Heavy Duty, Controlling Motor, Paint and Varnish Plant, Grain Elevator, Metal Finishing Area; Applicable Standard Nec/Cec; GUSC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39122204
• UPC 12 Digit: 781381452700
• SKU Name: app gusc753
