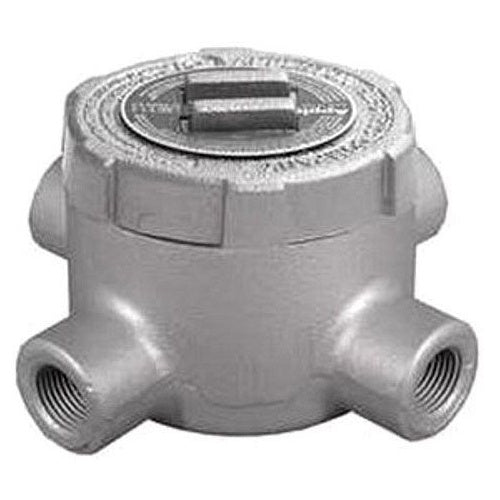

Appleton GUX75 3/4" Conduit Outlet Box

Overview

Appleton GUX75 3/4" Conduit Outlet Box

Product Specifications

• UPC: 78138151751
• Capacity: 19 Cu Inch
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 3.38 Inch
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Approval: UL 886, CSA C22.2
• Additional Information: Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• Catalog Number: GUX75
• Brand Name: Unilet[R]
• Model: GUX
• Style: X
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 4
• Hub Location: (4) Side
• Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 4, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (4) 3/4 IN GUX HUB, CUBIC CAPACITY: 19 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.38 IN, HEIGHT: 4.28 IN, WIDTH: 4.28 IN, DEPTH: 2-1/4 IN, FINISH: TRI
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Ductile Iron Material; Round Shape; 3/4 Inch Hub Size; 4 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4 Enclosure; Internally Threaded Cover Type; 19 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Gasket, Internal Ground Screw; Application Indoor and Outdoor; Applicable Standard Nec/Cec; GU Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381517515
• SKU Name: app gux75

Resources

• Manufacturer Spec Sheet
