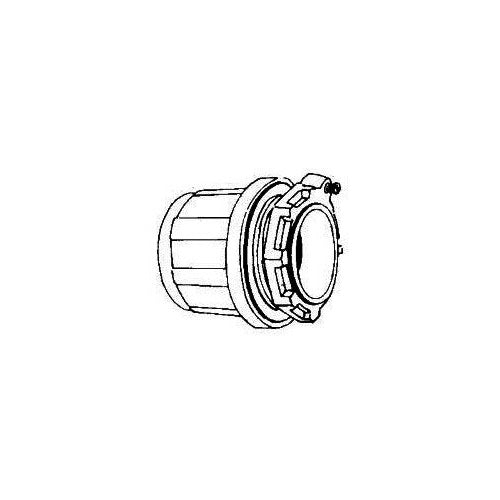

Appleton HUB-200B 2" Hub w/Bond Screw

Overview

Appleton HUB-200B 2" Hub w/Bond Screw

Product Specifications

• UPC: 78138150037
• Approval: UL 514B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: APPLICABLE STANDARD NEC 501-4(B), 502-4(A), 503-3(A)
• Catalog Number: HUB-200B
• Type: Threaded, Straight
• Throat Type: Insulated
• Trade Size: 2 Inch
• Size: 3.13 Inch Diameter x 1.19 Inch Length
• Constructional Feature: Watertight, Dusttight
• Ground Type: Bonding Locknut
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron Body, Zinc Electroplated Steel Locknut/Screw
• Catalog Description: STRAIGHT INSULATED THROAT HUB WITH BONDING SCREW, SIZE: 2 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), HEIGHT: 3.13 IN, STANDARD: UL 514B, UL FILE NUMBER E14814, CSA C22.2 NO. 18.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; Zinc Electroplated Ductile Iron (Body/Wedge), Zinc Electroplated Steel (Screw), Neoprene (O-ring), Nylon (Liner) Material; 3.25 Inch Diameter X 1.25 Inch Length Size; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; Locknut Bonding Screw; 2 Inch Trade Size; Dust/Water Tight; Insulated Throat Type; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Sheet Metal Enclosure, Service Entrance, General Purpose Fitting; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 781381500371
• SKU Name: app hub200b
