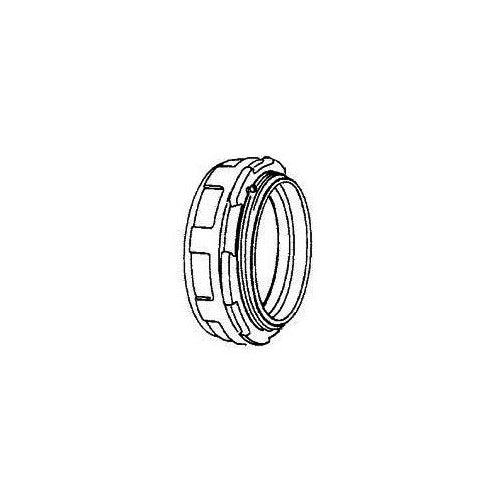

Appleton HUB-600MB Threaded Conduit Hub

Overview

Appleton HUB-600MB Threaded Conduit Hub

Product Specifications

• UPC: 78138154204
• Material: Zinc Electroplated Dichromate Dip Malleable Iron Body, Locknut, Zinc Plated Screw
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Includes Bonding Screw; Application Suitable for Service Entrance, General Purpose Fitting
• Catalog Number: HUB-600MB
• Model: HUB
• Type: Threaded
• Throat Type: Insulated
• Trade Size: 6 Inch
• Size: 7.69 Inch Dia x 2.03 Inch L
• Constructional Feature: Dusttight, Watertight
• Ground Type: Locknut Bonding Screw
• Catalog Description: RIGID CONDUIT HUB, TYPE THREADED, THROAT TYPE INSULATED, TRADE SIZE 6 INCH, SIZE 7.69 INCH DIA X 2.03 INCH L, CONSTRUCTIONAL FEATURE WATERTIGHT, GROUND TYPE LOCKNUT BONDING SCREW, MATERIAL ZINC ELECTROPLATED DICHROMATE DIP MALLEABLE IRON BODY, LOCKNUT, ZINC PLATED SCREW, APPROVAL UL, CSA, USED ON RIGID CONDUIT, INCLUDES BONDING SCREW, APPLICATION SUITABLE FOR SERVICE ENTRANCE, GENERAL PURPOSE FITTING
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; Zinc Electroplated Ductile Iron (Body/Wedge), Zinc Electroplated Steel (Locknut/Screw), Neoprene (O-ring), Nylon (Liner) Material; 8.13 Inch Diameter X 2.13 Inch Length Size; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; Locknut Bonding Screw; 6 Inch Trade Size; Dust/Water Tight; Insulated Throat Type; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Sheet Metal Enclosure, Service Entrance, General Purpose Fitting; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 781381542043
• SKU Name: app hub600mb
