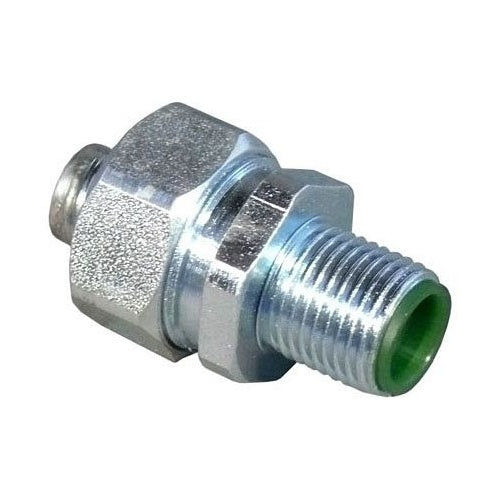

Appleton ISO10032-STB 1" Straight Green Insulator

Overview

Appleton ISO10032-STB 1" Straight Green Insulator

Product Specifications

• UPC: 78138162047
• Approval: UL, CSA
• Used On: FLEXIBLE METALLIC LIQUID TIGHT CONDUIT
• Additional Information: ENVIRONMENTAL CONDITIONS OIL TIGHT, RAIN TIGHT, WET LOCATION; INSULATOR COLOR GREEN; THREAD SIZE 32 MM
• Catalog Number: ISO10032-STB
• Brand Name: Appleton.
• Model: ISO
• Type: STRAIGHT
• Throat Type: INSULATED
• Trade Size: 1 INCH
• Material: ZINC ELECTROPLATED STEEL (BODY, FERRULE)
• Standard Package: 50
• Catalog Description: ISO METRIC THREAD STRAIGHT LIQUIDTIGHT CONNECTOR, SIZE: 1 IN, CONNECTION: M20 THREADED X COMPRESSION, MATERIAL: STEEL, INSULATION: GREEN NYLON INSULATOR, DIMENSIONS: 1.63 IN LENGTH X 1.81 IN HEIGHT, THREAD LENGTH: 3/4 IN, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3, 65178, BRITISH STANDARD BS3643 PART 2, FOR LIQUIDTIGHT FLEXIBLE METAL CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Metric Thread, Straight Type; Zinc Electroplated Steel (Body), Steel (Ferrule), Green Nylon (Insulator) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1 Inch Trade Size; Insulated Throat Type; Thread Size 32 Millimeter; Application Commercial/Industrial, Wet Location; Applicable Standard Nec/Cec; ISO-STB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381620475
• SKU Name: app iso10032stb

Resources

• Manufacturer Spec Sheet
