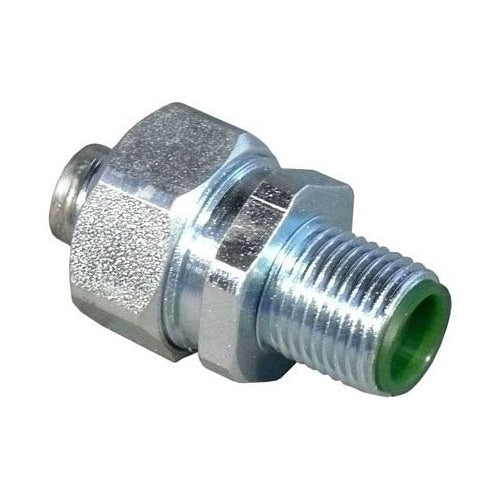

Appleton ISO3816-STB 3/8 Straight Green Insulator

Overview

Appleton ISO3816-STB 3/8 Straight Green Insulator

Product Specifications

• UPC: 78138162043
• Additional Information: Size 1.13 Inch Dia; Thread Size 16 MM; Insulator Color Green
• Catalog Number: ISO3816-STB
• Model: ISO
• Type: Straight
• Throat Type: Nylon Insulated
• Trade Size: 3/8 Inch
• Material: Zinc Electroplated Steel Body/Ferrule
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Catalog Description: ISO METRIC THREAD STRAIGHT LIQUIDTIGHT CONNECTOR, SIZE: 3/8 IN, CONNECTION: M16 THREADED X COMPRESSION, MATERIAL: STEEL, INSULATION: GREEN NYLON INSULATOR, DIMENSIONS: 1.44 IN LENGTH X 1.13 IN HEIGHT, THREAD LENGTH: 0.63 IN, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3, 65178, BRITISH STANDARD BS3643 PART 2, FOR LIQUIDTIGHT FLEXIBLE METAL CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Metric Thread, Straight Type; Zinc Electroplated Steel (Body), Steel (Ferrule), Green Nylon (Insulator) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 3/8 Inch Trade Size; Insulated Throat Type; Thread Size 16 Millimeter; Application Commercial/Industrial, Wet Location; Applicable Standard Nec/Cec; ISO-STB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381620437
• SKU Name: app iso3816stb

Resources

• Manufacturer Spec Sheet
