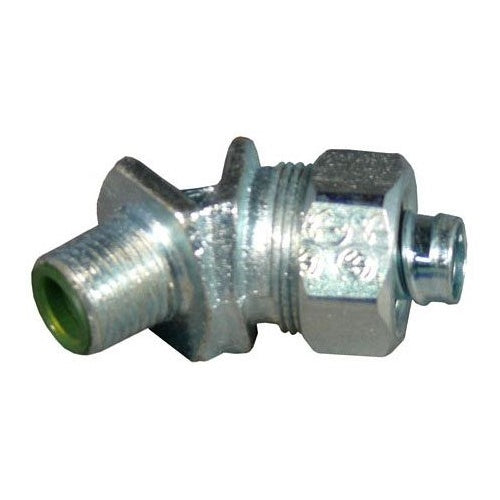

Appleton ISO455020-STB 1/2" 45D Green Insulator

Overview

Appleton ISO455020-STB 1/2" 45D Green Insulator

Product Specifications

• UPC: 78138162049
• Catalog Number: ISO455020-STB
• Type: 45 Degree
• Throat Type: Insulated
• Trade Size: 1/2 Inch
• Material: Zinc Electroplated Steel
• Approval: UL 514B, CSA C22.2
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Overall Diameter 1.13 Inch; Metric Thread 20 TPI; Application Wet Location
• Catalog Description: ISO METRIC THREAD 45 DEG LIQUIDTIGHT CONNECTOR, SIZE: 1/2 IN, CONNECTION: M20 THREADED X COMPRESSION, MATERIAL: MALLEABLE IRON, INSULATION: GREEN NYLON INSULATOR, THREAD LENGTH: 0.63 IN, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3, 65178, BRITISH STANDARD BS3643 PART 2, FOR LIQUIDTIGHT FLEXIBLE METAL CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Metric Thread, 45 Degree Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Steel (Ferrule), Green Nylon (Insulator) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; Insulated Throat Type; Thread Size 20 Millimeter; Application Commercial/Industrial, Wet Location; Applicable Standard Nec/Cec; ISO-STB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381620499
• SKU Name: app iso455020stb
