Appleton ISO9010032-STB 1" 90D Insulator

Overview

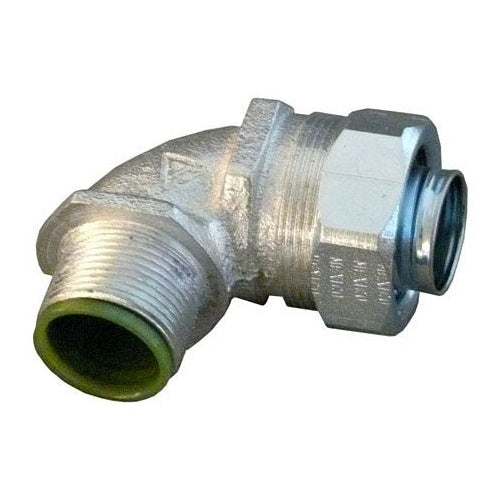

Appleton ISO9010032-STB 1" 90D Insulator

Product Specifications

• UPC: 78138162057
• Approval: UL, CSA
• Used On: FLEXIBLE METALLIC LIQUID TIGHT CONDUIT
• Additional Information: ENVIRONMENTAL CONDITIONS OIL TIGHT, RAIN TIGHT, WET LOCATION; INSULATOR COLOR GREEN; THREAD SIZE 32 MM
• Catalog Number: ISO9010032-STB
• Brand Name: Appleton[R]
• Model: ISO
• Type: 90 DEG
• Throat Type: INSULATED
• Trade Size: 1 INCH
• Material: ZINC ELECTROPLATED DICHROMATE ALUMINUM POLYMER ENAMELED MALLEABLE IRON BODY, STEEL FERRULE
• Standard Package: 25
• Catalog Description: LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, TYPE 90 DEG, THROAT TYPE NYLON INSULATED, TRADE SIZE 1 INCH, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, STANDARD PACKAGE 25, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT FLEXIBLE METAL CONDUIT, SIZE 3.19 INCH DIA, THREAD SIZE 32 MM, INSULATOR COLOR GREEN, APPLICATION OILTIGHT, RAINTIGHT, WET LOCATION
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Metric Thread, 90 Degree Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Steel (Ferrule), Green Nylon (Insulator) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1 Inch Trade Size; Insulated Throat Type; Thread Size 32 Millimeter; Application Commercial/Industrial, Wet Location; Applicable Standard Nec/Cec; ISO-STB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381620574
• SKU Name: app iso9010032stb

Resources

• Manufacturer Spec Sheet
