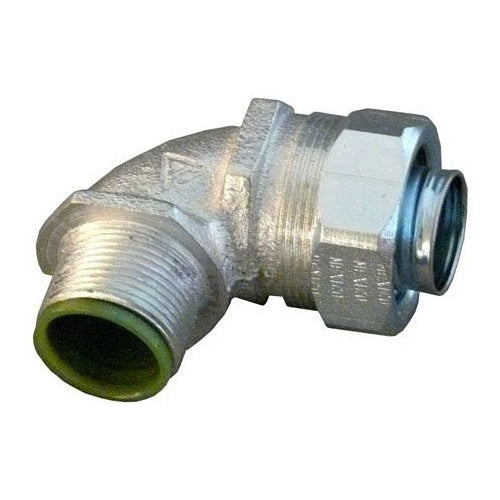

Appleton ISO907525-STB 3/4" 90D Green Insulator

Overview

Appleton ISO907525-STB 3/4" 90D Green Insulator

Product Specifications

• UPC: 78138162056
• Additional Information: Size 2.63 Inch Dia; Thread Size 25 MM; Insulator Color Green
• Catalog Number: ISO907525-STB
• Model: ISO
• Type: 90 Deg Male
• Throat Type: Nylon Insulated
• Trade Size: 3/4 Inch
• Material: Zinc Electroplated Steel Body/Ferrule
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Catalog Description: ISO METRIC THREAD 90 DEG LIQUIDTIGHT CONNECTOR, SIZE: 3/4 IN, CONNECTION: M25 THREADED X COMPRESSION, MATERIAL: MALLEABLE IRON, INSULATION: GREEN NYLON INSULATOR, THREAD LENGTH: 0.63 IN, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3, 65178, BRITISH STANDARD BS3643 PART 2, FOR LIQUIDTIGHT FLEXIBLE METAL CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Metric Thread, 90 Degree Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Steel (Ferrule), Green Nylon (Insulator) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 3/4 Inch Trade Size; Insulated Throat Type; Thread Size 25 Millimeter; Application Commercial/Industrial, Wet Location; Applicable Standard Nec/Cec; ISO-STB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381620567
• SKU Name: app iso907525stb

Resources

• Manufacturer Spec Sheet
