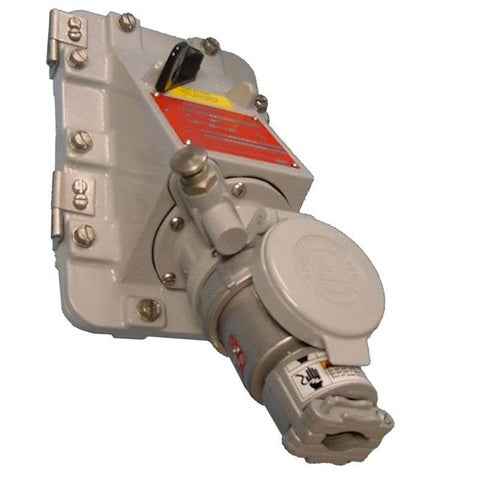

Appleton JBR6023150 Cover Assembly

Overview

Appleton JBR6023150 Cover Assembly

Product Specifications

• UPC: 78138163276
• Number Of Wires: 2
• Hub Size: 1-1/4 TO 1-1/2 INCH
• Box Type: SINGLE GANG
• Mating Plug: ACP, CPH
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/7B/7C/7D/9F/9G
• Catalog Number: JBR6023150
• Brand Name: Appleton[R]
• Model: JBR
• Type: FEED THROUGH
• Voltage Rating: 240/480/600 VAC AT 50 TO 400 HZ
• Current Rating: 60 AMPERE
• Power Rating: 10 HP AT 240 VAC, 25 HP AT 480 VAC, 30 HP AT 600 VAC
• Number Of Poles: 3
• Catalog Description: SWITCHED PIN AND SLEEVE RECEPTACLE ASSEMBLY, TYPE DEAD FRONT, VOLTAGE RATING 600 VAC, CURRENT RATING 60 AMPERE, NUMBER OF POLES 3, NUMBER OF WIRES 2, HUB SIZE 1-1/2 INCH, MATING PLUG ACP, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/7BC7D/9FG, APPROVAL UL 894/1010/1682/1686, APPLICATION LIGHTING SYSTEMS, CONVEYORS, HEATERS, MOTOR-GENERATOR SETS, AIR CONDITIONERS, COMPRESSORS, PUMPS, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead Front Interlocked Type; 1-1/2 Inch Hub Size; 2 Wire(S); UL 894/1010/1203/1682/1686, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7BCD/9FG Enclosure; 60 Amp Current Rating; Flip/Screw Cover Type; 10 HP at 240 Volt AC, 15 HP at 480 Volt AC, 20 HP at 600 Volt AC Power Rating; 3 Pole(S); Acp, Cph Mating Plug; Overall Dimension 10.28 Inch Depth X 11.75 Inch Height; Wire Size 4 to 6 AWG; Material Epoxy Powder Coated Copper-Free Aluminum (Mounting Box/Receptacle); Includes 1-1/2 to 1-1/4 Inch Reducing Bushing; Application Lighting System, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Stationary Equipment; Applicable Standard Nec/Cec; JBR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381632768
• SKU Name: app jbr6023150

Resources

• Manufacturer Spec Sheet
