Appleton JGBNLGR Red Jewel & Guard

Overview

Appleton JGBNLGR Red Jewel & Guard

Product Specifications

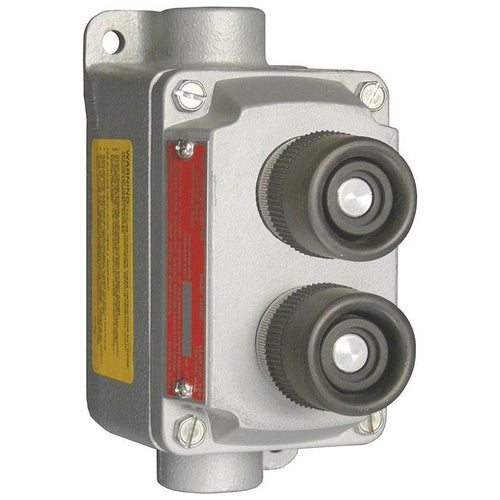

• Catalog Description: PILOT LIGHT JEWEL/GUARD ASSEMBLY, TYPE RED JEWEL/PLAIN GUARD ASSEMBLY, USED ON ECS CONTROL STATION, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST IGNITIONPROOF, ENCLOSURE CLASS I DIV 1 2 GROUP B C D, CLASS II DIV 1 2 GROUP E F G, CLASS III, CSA TYPE 3R 7B/7C/7D/9E/9F/9G, BODY MATERIAL COPPER FREE ALUMINUM, PUSHBUTTON MATERIAL ALUMINUM UPPER BARREL PHELONIC LOWER BARREL, DUST CAP MATERIAL NEOPRENE BUTTON, PILOT LIGHT GUARD AND BODY MATERIAL ALUMINUM AND TEMPERED GLASS JEWEL, CLAMPING RING MATERIAL STEEL, SELECTOR SWITCH MATERIAL ALUMINUM OPERATOR MECHANISM AND NYLON CAM, BODY AND COVER FINISH BAKED EPOXY PAINT, OPERATORS FINISH NATURAL, INCLUSION NEOPRENE WEATHER BOOT, 120 VAC LAMP
• Category: Push Button, Pilot Light, Selector Switch Accessories
• Full Technical Description: Jewel and Guard Assembly, Plain Type; Pilot Light Used on; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Explosionproof; Color Red; Material Tempered Glass (Jewel), Copper-Free Aluminum (Guard); Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Accessories
• Unspsc: 39121534
• UPC 12 Digit: 781381765893
• SKU Name: app jgbnlgr

Resources

• Manufacturer Spec Sheet
