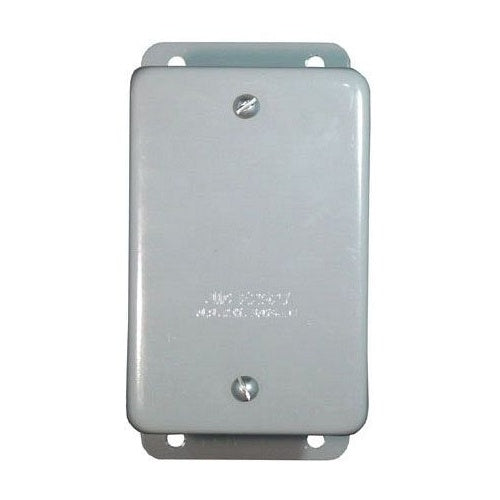

Appleton JIC-1 JIC Box w/Gasket & Cover

Overview

Appleton JIC-1 JIC Box w/Gasket & Cover

Product Specifications

• UPC: 78138117808
• Cover Type: Gasketed
• Approval: UL 514A
• Additional Information: Application Use as a Liquidtight Junction Box, Accommodate Pilot Lights and Switch Devices
• Catalog Number: JIC-1
• Model: JIC
• Height: 4-1/8 Inch
• Width: 2-5/8 Inch
• Depth: 2-3/16 Inch
• Material: Steel
• Finish: Zinc Electroplated Dichromate Epoxy Powder Coated
• Mounting: Surface
• Catalog Description: BLANK JUNCTION BOX WITH COVER, MATERIAL: STEEL, MOUNTING: SCREW, WIRING CAPACITY: 21 SQ-IN, WIDTH: 2.63 IN, DEPTH: 2.23 IN, HEIGHT: 5-1/4 IN, STANDARD: UL 514A, UL FILE NUMBER E2527, FOR USE WITH FS COVERS, PILOT LIGHTS AND SWITCH DEVICES
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Blank Type; Steel Material; Zinc Electroplated/Epoxy Powder Coated Finish; 2-5/8 Inch; 4-1/8 Inch; 2-3/16 Inch; UL 514A Approval; Gasketed Cover Type; Includes Cover; Application Liquid Tight Junction Box, Pilot Light and Switch Device; Applicable Standard Nec/Cec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pull/Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 781381178082
• SKU Name: app jic1

Resources

• Manufacturer Spec Sheet
