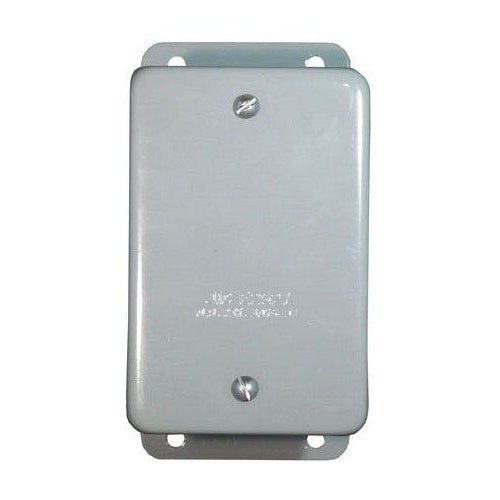

Appleton JIC-C1 1H Cover w/Neo Gasket

Overview

Appleton JIC-C1 1H Cover w/Neo Gasket

Product Specifications

• UPC: 78138146585
• Additional Information: Hole Size 1.218 Inch
• Catalog Number: JIC-C1
• Model: JIC
• Type: One Hole
• Installation: Screw
• Material: Steel
• Finish: Zinc Electroplate, Dichromate, Epoxy Powder Coated
• Used On: JIC Series Outlet and Junction Box
• Approval: UL 514A
• Catalog Description: CAST COVER, MATERIAL: STEEL, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), SIZE: 1-7/32 IN HOLE DIAMETER, NUMBER OF OUTLET: (1) HEAVY DUTY OIL TIGHT PUSH BUTTONS/PILOT LIGHTS/SELECTOR SWITCHES, MOUNTING: BOX, LENGTH: 4.09 IN, DEPTH: 0.32 IN, FOR USE WITH JIC SERIES BOXES TO ACCOMMODATE HEAVY DUTY OIL TIGHT PUSH BUTTONS, PILOT LIGHTS AND SELECTOR SWITCHES AND 30.5 MM DEVICES
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: 1-Hole Type; Steel Material; Zinc Electroplated/Epoxy Powder Coated Finish; JIC Liquid Tight Outlet and Junction Box Used on; Screw Installation; UL 514A Approval; Hole Size 1.218 Inch; Applicable Standard Nec/Cec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Enclosure Cover
• Unspsc: 39121304
• UPC 12 Digit: 781381465854
• SKU Name: app jicc1

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
