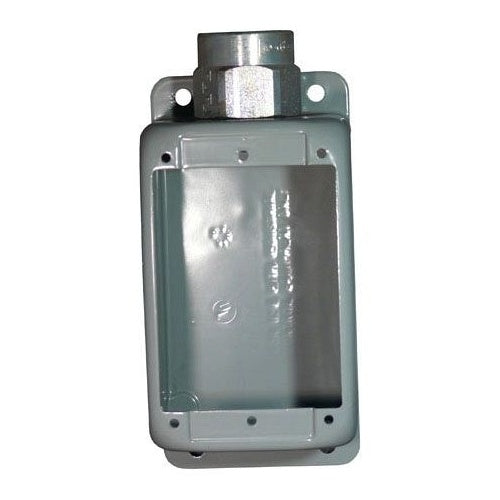

Appleton JIC-H75 3/4" JIC Box w/Hub

Overview

Appleton JIC-H75 3/4" JIC Box w/Hub

Product Specifications

• UPC: 78138146605
• Width In Mm: 66.675
• Depth: 2 1/4 INCH
• Depth In Inch: 2.25
• Depth In Mm: 57.15
• Material: STEEL
• Finish: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED
• Mounting: SURFACE
• Cover Type: JIC-C/JIC-C1
• Approval: UL 514-A
• Height In Inch Uom: in
• Catalog Number: JIC-H75
• Height In Mm Uom: mm
• Width In Inch Uom: in
• Width In Mm Uom: mm
• Depth In Inch Uom: in
• Depth In Mm Uom: mm
• Additional Information: WITH (1) 3/4 INCH UNI SEAL HUB
• Brand Name: Appleton[R]
• Model: JIC
• Height: 5 23/32 INCH
• Height In Inch: 5.719
• Height In Mm: 145.263
• Width: 2 5/8 INCH
• Width In Inch: 2.625
• Catalog Description: LIQUIDTIGHT JUNCTION BOX, HEIGHT 5.72 INCH, WIDTH 2.63 INCH, DEPTH 2.25 INCH, MATERIAL STEEL, FINISH ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED, MOUNTING SURFACE, COVER TYPE SCREW-ON, APPROVAL UL 514A/E2527, APPLICATION PILOT LIGHT, SWITCH DEVICE, WIRING CAPACITY 21 INCH, INCLUDE (1) 1-3/4 INCH STN CONNECTOR, THREADED HUB
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Steel Material; Zinc Electroplated/Epoxy Powder Coated Finish; UL 514A Approval; Includes (1) 3/4 Inch Uni-Seal Hub; Application Liquid Tight Junction Box, Pilot Light and Switch Device; Applicable Standard Nec/Cec
• Made In Usa: Yes
• Manufacturer: APPLETON ELECTRIC COMPANY
• Manufacturer Brand: Appleton Electric
• Sub Category: Pull/Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 781381466059
• SKU Name: app jich75

Resources

• Manufacturer Spec Sheet
