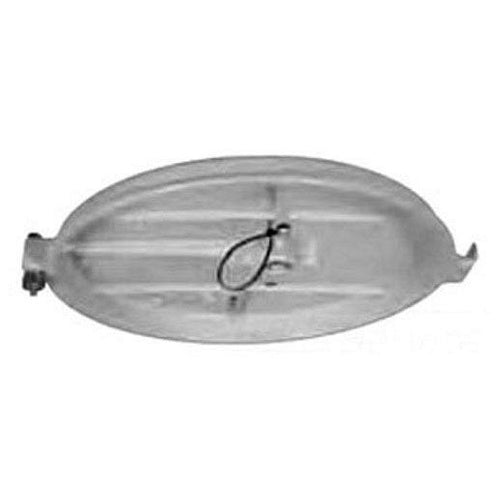

Appleton KPAF75 Flex Pendant Hood

Overview

Appleton KPAF75 Flex Pendant Hood

Product Specifications

• UPC: 78138175709
• Approval: UL 1598/1598A/844/60079-0/60079-15
• Additional Information: Mounting Type Flexible
• Catalog Number: KPAF75
• Brand Name: Mercmaster[TM], PRE-PAK
• Type: Pendant Flexible
• Number Of Hubs: 1
• Hub Size: 3/4 Inch
• Material: Copper Free Cast Aluminum
• Finish: Epoxy Powder Coated
• Enclosure: Class I DIV 2 Group A B C D, Class I Zone 2 AEX NA NR IIC (Z2), Class I Zone 2 EX NR IIC (Z), Class I Zone 2 AEX NR IIC (ZB)
• Catalog Description: MOUNTING HOOD, SIZE: 3/4 IN HUB, MATERIAL: CAST COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, LAMP TYPE: HIGH PRESSURE SODIUM AND PULSE START METAL HALIDE, MOUNTING: PENDANT, FINISH: BAKED GRAY EPOXY-CLAD, FOR MERCMASTER III LOW PROFILE LUM
• Category: Lighting Accessories
• Full Technical Description: Pendant, Rigid/Flexible Type; Copper-Free Cast Aluminum Material; Electrostatically Applied Epoxy Powder Coated Finish; 3/4 Inch Threaded Hub Size; 1 Hub(S); UL 844/1598/1598A, UL (Canada and Us), CSA C22.2 Approval; Class I Div 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class I Zone 2 Group Iic (Z2), Class I Zone 2 Group Iic (Zb), Class III, NEMA 4X, IP66 Enclosure; Used on Mercmaster III HID Luminaire; Application Pulp/Paper Mill, Processing/Chemical Plant, Oil Refinery, Foundry, Manufacturing Plant, Storage Area, Marine; Applicable Standard Nec/Cec, ANSI
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof HID Fixture Mounting Hood
• Unspsc: 39111817
• UPC 12 Digit: 781381757096
• SKU Name: app kpaf75

Resources

• Manufacturer Spec Sheet
