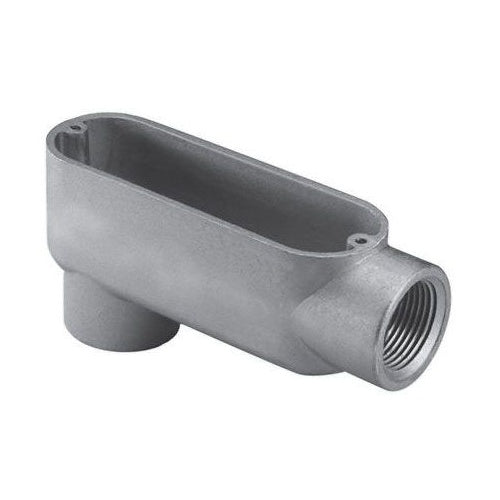

Appleton LB200T-A 2" Aluminum LB-Type Body

Overview

Appleton LB200T-A 2" Aluminum LB-Type Body

Product Specifications

• UPC: 78138147715
• Size: 10.19 Inch L x 4.56 Inch H
• Installation: Set Screw
• Material: Epoxy Powder Coated Pressure Cast Copper Free Aluminum
• Form Type: Form 85
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: EMT Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 70 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conducto
• Catalog Number: LB200T-A
• Brand Name: Unilet[R], Form 85[TM]
• Access Opening: Back
• Configuration: LB
• Cover Type: Epoxy Powder Coated Cast Aluminum
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 2 Inch
• Catalog Description: FORM 85 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 2 IN, FORM: 85, LENGTH: 10.19 IN, HEIGHT: 4.56 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: SET-SCREW, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E252
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 10.19 Inch Length X 4.56 Inch Height Size; EMT Conduit Used on; 2 Inch Hub Size; Set Screw Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 85 Form Type; Back Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 4/0 AWG; Capacity 70 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381477154
• SKU Name: app lb200ta
