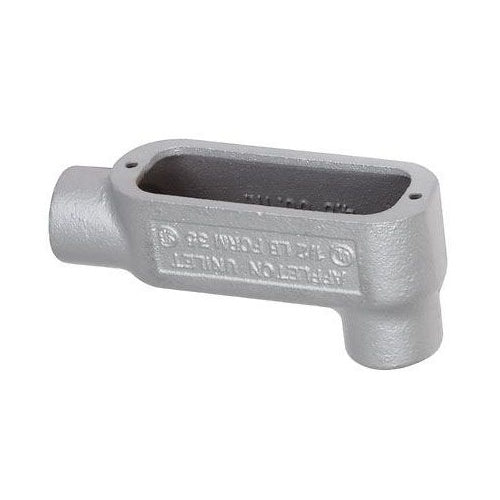

Appleton LB500-M 5" Malleable LB-Type Conduit Body

Overview

Appleton LB500-M 5" Malleable LB-Type Conduit Body

Product Specifications

• UPC: 78138147765
• Size: 20.25 Inch L x 9 Inch H
• Installation: Threaded
• Material: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron Body, Fiber/Neoprene Gasket, Stainless Steel Screw
• Form Type: Form 35
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductors for Maintenance
• Catalog Number: LB500-M
• Brand Name: Unilet[R], Form 35[TM]
• Access Opening: Back
• Configuration: LB
• Cover Type: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 5 Inch
• Catalog Description: FORM 35 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 5 IN, FORM: 35, LENGTH: 20-1/4 IN, HEIGHT: 9 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FEMALE THREADED
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw) Material; 20.25 Inch Length X 9 Inch Height Size; Imc/Rigid Conduit Used on; 5 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 35 Form Type; Back Access Opening; Form 35[TM] Brand; Wire Size (3) 600 MCM; Capacity 756 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381477659
• SKU Name: app lb500m
