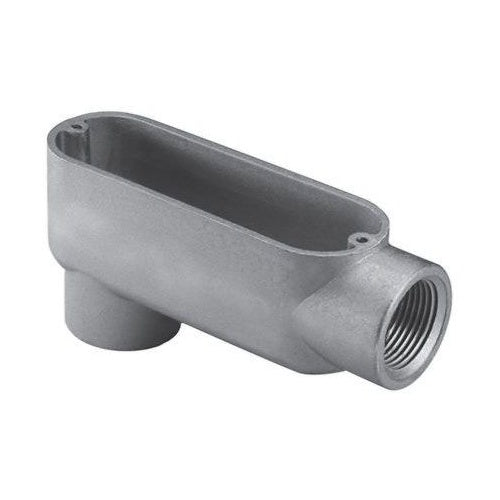

Appleton LB57SA 1-1/2" Aluminum LB-Type Conduit Body

Overview

Appleton LB57SA 1-1/2" Aluminum LB-Type Conduit Body

Product Specifications

• UPC: 78138160077
• Size: 7.13 Inch Length x 3.69 Inch Height
• Installation: Threaded
• Material: Epoxy Powder Coated Copper-Free Cast Aluminum
• Form Type: Form 7
• Approval: UL 514A/B, CSA C22.2, NEC
• Used On: IMC/Rigid Conduit
• Additional Information: Enclosure Rating Class I Div 2; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance, Hazardous Location; Applicable Standard NEMA FB-1
• Catalog Number: LB57SA
• Brand Name: FM7[TM]
• Access Opening: Back
• Configuration: LB
• Cover Type: Epoxy Powder Coated Copper-Free Cast Aluminum
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 1-1/2 Inch
• Catalog Description: FM7 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 7, LENGTH: 7.13 IN, HEIGHT: 3.69 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, C
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 7.13 Inch Length X 3.69 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Wire Size (3) 3 AWG; Capacity 28 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381600774
• SKU Name: app lb57sa
