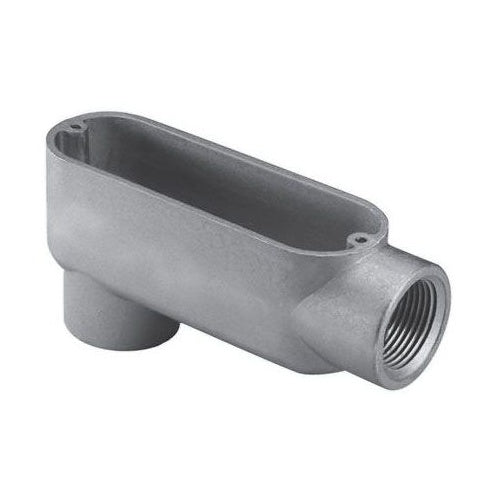

Appleton LB75T-A 3/4" Aluminum LB-Type Body

Overview

Appleton LB75T-A 3/4" Aluminum LB-Type Body

Product Specifications

• UPC: 78138147615
• Hub Size: 3/4 Inch
• Size: 5.13 Inch Length x 2.44 Inch Height
• Installation: Set Screw
• Material: Epoxy Powder Coated Pressure Cast Copper-Free Aluminum (Body), Neoprene/Fiber (Gasket), Stainless Steel (Screw)
• Form Type: Form 85
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 7 Cubic Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
• Catalog Number: LB75T-A
• Brand Name: Appleton
• Model: LB
• Access Opening: Back
• Configuration: LB
• Cover Type: Epoxy Powder Coated Cast Aluminum
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: FORM 85 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 85, LENGTH: 5.13 IN, HEIGHT: 2.44 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: SET-SCREW, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E252
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Sand Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 5.13 Inch Length X 2.44 Inch Height Size; EMT Conduit Used on; 3/4 Inch Hub Size; Set Screw Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 85 Form Type; Back Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 6 AWG; Capacity 7 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381476157
• SKU Name: app lb75ta
