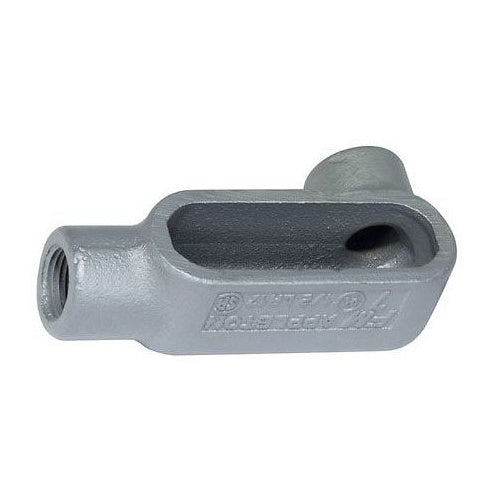

Appleton LB97-SA 3-1/2" Aluminum LB-Type Conduit Body

Overview

Appleton LB97-SA 3-1/2" Aluminum LB-Type Conduit Body

Product Specifications

• UPC: 78138160661
• Size: 12.69 Inch L x 6.56 Inch H
• Installation: Threaded
• Material: Epoxy Powder Coated Copper Free Cast Aluminum Body, Neoprene Gasket, Stainless Steel Cover Screw
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Capacity 218 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conduct
• Catalog Number: LB97-SA
• Brand Name: Unilet[R], FM7[TM]
• Access Opening: Back
• Configuration: LB
• Cover Type: Epoxy Powder Coated Copper Free Cast Aluminum
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 3-1/2 Inch
• Catalog Description: IMC/RIGID CONDUIT BODY, ACCESS OPENING BACK, CONFIGURATION LB, COVER TYPE EPOXY POWDER COATED CAST COPPER FREE ALUMINUM, HUB LOCATION 90 DEG, NUMBER OF HUBS 2, HUB SIZE 3-1/2 INCH, SIZE 12.69 INCH L X 6.56 INCH H, INSTALLATION THREADED, MATERIAL EPOXY POWDER COATED COPPER FREE CAST ALUMINUM BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FORM TYPE FORM 7, APPROVAL UL 514A/514B/E2527, CSA C22.2, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEC/CEC, NEMA FB-1, CAPACITY 218 CU INCH
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 12.69 Inch Length X 6.56 Inch Height Size; Imc/Rigid Conduit Used on; 3-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Wire Size (3) 300 MCM; Capacity 218 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381606615
• SKU Name: app lb97sa

Resources

• Manufacturer Spec Sheet
