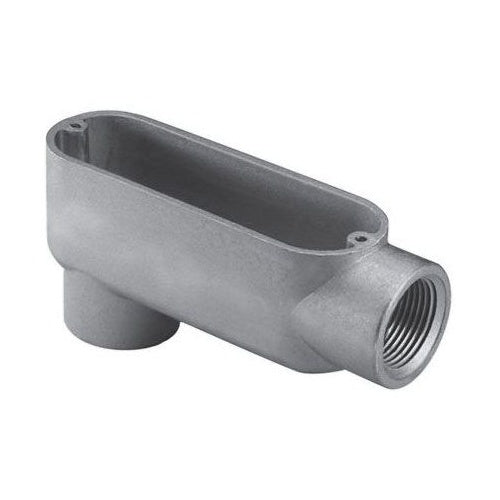

Appleton LL50A 1/2" Aluminum LL-Type Conduit Body

Overview

Appleton LL50A 1/2" Aluminum LL-Type Conduit Body

Product Specifications

• UPC: 78138147970
• Hub Size: 1/2 Inch
• Size: 4.31 Inch Length x 2 Inch Width
• Installation: Threaded
• Material: Epoxy Powder Coated Pressure Cast Copper-Free Aluminum (Body), Neoprene/Fiber (Gasket), Stainless Steel (Screw)
• Form Type: Form 85
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 4 Cubic Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
• Catalog Number: LL50A
• Brand Name: Appleton
• Model: LL
• Access Opening: Left Side
• Configuration: LL
• Cover Type: Epoxy Powder Coated Cast Aluminum
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: FORM 85 UNILETS TYPE LL CONDUIT OUTLET BODY, HUB SIZE: 1/2 IN, FORM: 85, LENGTH: 4.31 IN, WIDTH: 2 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUM
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 4.31 Inch Length X 2 Inch Width Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 85 Form Type; Left Side Access Opening; UNILETS[R], Form 85[TM] Brand; Capacity 4 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381479707
• SKU Name: app ll50a

Resources

• Manufacturer Spec Sheet
