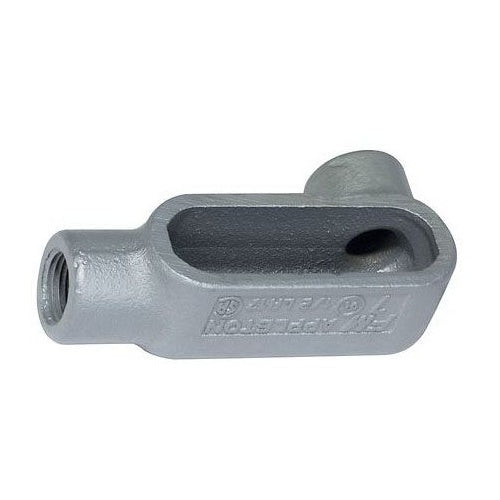

Appleton LL97 3-1/2" LL-Type Conduit Body

Overview

Appleton LL97 3-1/2" LL-Type Conduit Body

Product Specifications

• UPC: 78138150691
• Size: 12.69 Inch L x 6.94 Inch W
• Installation: Threaded
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron (Body), Neoprene (Gasket), Stainless Steel Cover (Screw)
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 218 Cu Inch
• Catalog Number: LL97
• Brand Name: Unilet[R], FM7[TM]
• Access Opening: Left Side
• Configuration: LL
• Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 3-1/2 Inch
• Catalog Description: FM7 UNILETS TYPE LL CONDUIT OUTLET BODY, HUB SIZE: 3-1/2 IN, FORM: 7, LENGTH: 12.69 IN, WIDTH: 6.94 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR USE WITH RIGID STEEL, RIGID ALUMINUM CONDUIT AND IMC
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 12.69 Inch Length X 6.94 Inch Width Size; Imc/Rigid Conduit Used on; 3-1/2 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Left Side Access Opening; FM7[TM] Brand; Wire Size (3) 350 MCM; Capacity 218 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381506915
• SKU Name: app ll97
