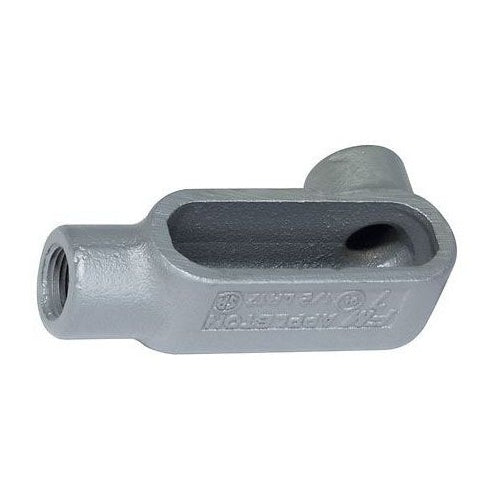

Appleton LR17SA 1/2" Aluminum LR-Type Conduit Body

Overview

Appleton LR17SA 1/2" Aluminum LR-Type Conduit Body

Product Specifications

• UPC: 78138160089
• Size: 4.56 Inch L x 2.25 Inch W
• Installation: Threaded
• Material: Epoxy Powder Coated Copper Free Cast Aluminum Body, Neoprene Gasket, Stainless Steel Cover Screw
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Capacity 4 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductor
• Catalog Number: LR17SA
• Brand Name: Unilet[R], FM7[TM]
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Epoxy Powder Coated Copper Free Cast Aluminum
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 1/2 Inch
• Catalog Description: FM7 UNILETS TYPE LR CONDUIT OUTLET BODY, HUB SIZE: 1/2 IN, FORM: 7, LENGTH: 4.56 IN, WIDTH: 2-1/4 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 4.56 Inch Length X 2.25 Inch Width Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Right Side Access Opening; FM7[TM] Brand; Capacity 4 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381600897
• SKU Name: app lr17sa

Resources

• Manufacturer Spec Sheet
