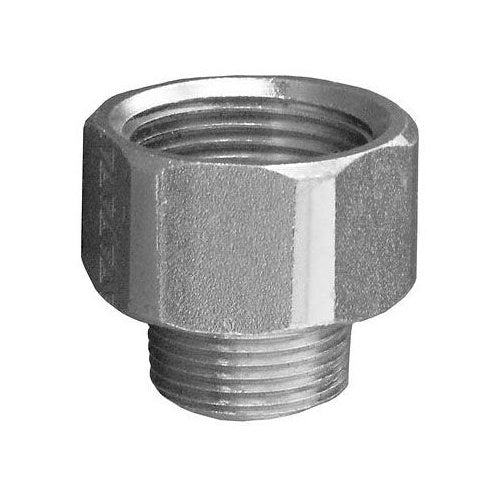

Appleton ME50-75 1/2" To 3/4" M Enlarger

Overview

Appleton ME50-75 1/2" To 3/4" M Enlarger

Product Specifications

• UPC: 78138163060
• Catalog Number: ME50-75
• Type: Threaded
• Large End Trade Size: 3/4 Inch
• Small End Trade Size: 1/2 Inch
• Size: 1.38 Inch Diameter x 1.34 Inch Length
• Material: Turned Steel
• Used On: IMC/Rigid Conduit
• Additional Information: End Connection Female Threaded x Male Threaded; Application Commercial and Industrial; Applicable Standard NEC/CEC, NEMA FB-1
• Catalog Description: IMC/RIGID CONDUIT MALE ENLARGER, TYPE THREADED HEX HEAD, LARGE END TRADE SIZE 3/4 INCH, SMALL END TRADE SIZE 1/2 INCH, SIZE 1.38 INCH DIA X 1.34 INCH L, MATERIAL STEEL, APPROVAL UL E11853/E14814/514B, CSA C22.2, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEMA FB-1
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Male/Female Hex Head Type; Turned Steel Material; 1.38 Inch Diameter X 1.34 Inch Length Size; Imc/Rigid Metal Conduit Used on; 1/2 Inch Small End Trade Size; 3/4 Inch Large End Trade Size; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Reducer
• Unspsc: 39121311
• UPC 12 Digit: 781381630603
• SKU Name: app me5075

Resources

• Manufacturer Spec Sheet
